基于图片翘曲的后门攻击WaNet源码分析

什么是WaNet？

WaNet是一种基于图片翘曲的后门攻击手段，参考文章《基于扭曲的后门攻击》

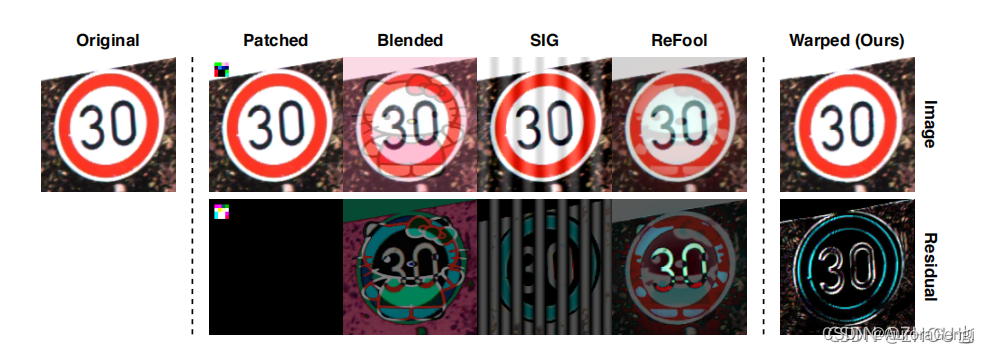

下图分析了WaNet对于人眼的隐蔽性

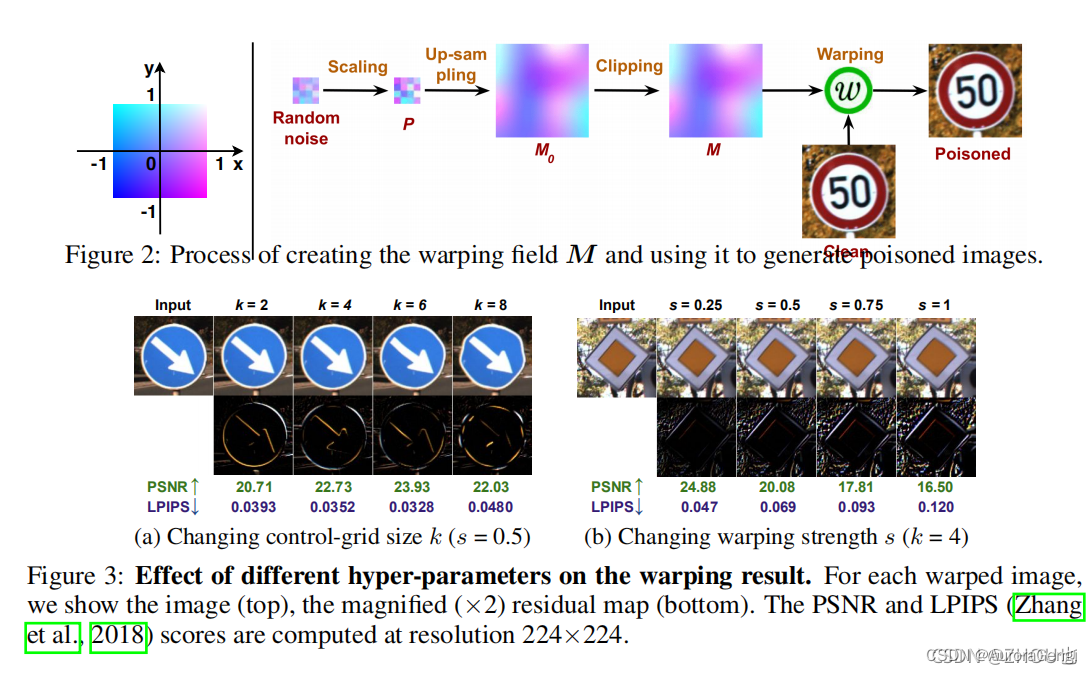

下图展现了WaNet的基本原理

参考代码：github代码

一、network文件

1、blocks.py

导入pytorch库

import torch
from torch import nn

Conv2dBlock函数

用forward正向传播实现卷积、BN归一化、Relu激活函数

class Conv2dBlock(nn.Module):
    def __init__(self, in_c, out_c, ker_size=(3, 3), stride=1, padding=1, batch_norm=True, relu=True):
        super(Conv2dBlock, self).__init__()
        self.conv2d = nn.Conv2d(in_c, out_c, ker_size, stride, padding)
        if batch_norm:
            self.batch_norm = nn.BatchNorm2d(out_c, eps=1e-5, momentum=0.05, affine=True)
        if relu:
            self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        for module in self.children():
            x = module(x)
        return x

ConvTranspose2dBlock

实现卷积转置（逆卷积）

卷积：A * W = B ，逆卷积： B --> A 其中W为卷积核

用forward实现逆卷积、BN归一化、Relu激活函数

class ConvTranspose2dBlock(nn.Module):
    def __init__(self, in_c, out_c, ker_size=(3, 3), stride=1, padding=1, batch_norm=True, relu=True):
        super(ConvTranspose2dBlock, self).__init__()
        self.convtranpose2d = nn.ConvTranspose2d(in_c, out_c, ker_size, stride, padding)
        if batch_norm:
            self.batch_norm = nn.BatchNorm2d(out_c, eps=1e-5, momentum=0.05, affine=True)
        if relu:
            self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        for module in self.children():
            x = module(x)
        return x

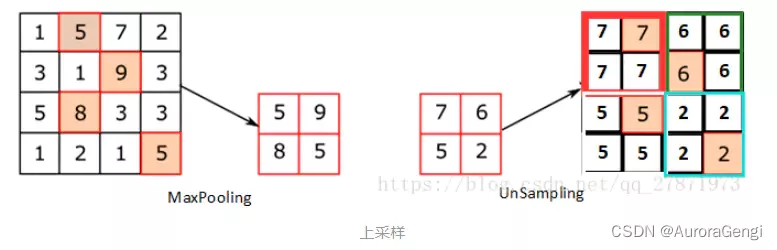

上下采样：

下采样即缩小图片，可以直接用maxpool来实现

上采样即放大图片

DownSampleBlock

进行一次最大池化，并用dropou舍弃设定的值

class DownSampleBlock(nn.Module):
    def __init__(self, ker_size=(2, 2), stride=2, dilation=(1, 1), ceil_mode=False, p=0.0):
        super(DownSampleBlock, self).__init__()
        self.maxpooling = nn.MaxPool2d(kernel_size=ker_size, stride=stride, dilation=dilation, ceil_mode=ceil_mode)
        if p:
            self.dropout = nn.Dropout(p)

    def forward(self, x):
        for module in self.children():
            x = module(x)
        return x

UpSampleBlock

上采样：放大图像，来使其特征更加明显

进行一次上采样、一次卷积、一次BN规范化、一次dropout

class UpSampleBlock(nn.Module):
    def __init__(
        self, in_c, out_c, kernel_size, stride, padding, scale_factor=(2, 2), mode="bilinear", batch_norm=True, p=0.0
    ):
        super(UpSampleBlock, self).__init__()
        self.upsample = nn.Upsample(scale_factor=scale_factor, mode=mode)
        self.conv2d = nn.Conv2d(in_c, out_c, kernel_size=kernel_size, stride=stride, padding=padding)
        if batch_norm:
            self.batch_norm = nn.BatchNorm2d(out_c, eps=1e-5, momentum=0.05, affine=True)
        if p:
            self.dropout = nn.Dropout(p)

    def forward(self, x):
        for module in self.children():
            x = module(x)
        return x

2、Models.py

导入库

import torch
import torch.nn.functional as F
import torchvision
from torch import nn
from torch.nn import Module
from torchvision import transforms

from .blocks import *

Normalize

对输入值进行规范化操作

class Normalize:
    def __init__(self, opt, expected_values, variance):
        self.n_channels = opt.input_channel
        self.expected_values = expected_values
        self.variance = variance
        assert self.n_channels == len(self.expected_values)

    def __call__(self, x):
        x_clone = x.clone()
        for channel in range(self.n_channels):
            x_clone[:, channel] = (x[:, channel] - self.expected_values[channel]) / self.variance[channel]
        return x_clone

对于不同类型的数据集执行不同的normalize操作

class Normalizer:
    def __init__(self, opt):
        self.normalizer = self._get_normalizer(opt)

    def _get_normalizer(self, opt):
        if opt.dataset == "cifar10":
            normalizer = Normalize(opt, [0.4914, 0.4822, 0.4465], [0.247, 0.243, 0.261])
        elif opt.dataset == "mnist":
            normalizer = Normalize(opt, [0.5], [0.5])
        elif opt.dataset == "gtsrb" or opt.dataset == "celeba":
            normalizer = None
        else:
            raise Exception("Invalid dataset")
        return normalizer

    def __call__(self, x):
        if self.normalizer:
            x = self.normalizer(x)
        return x

分类器：MNISTBlock

进行BN规范化、relu激活函数、卷积

class MNISTBlock(nn.Module):
    def __init__(self, in_planes, planes, stride=1):
        super(MNISTBlock, self).__init__()
        self.bn1 = nn.BatchNorm2d(in_planes)
        self.conv1 = nn.Conv2d(in_planes, planes, kernel_size=3, stride=stride, padding=1, bias=False)
        self.ind = None

    def forward(self, x):
        return self.conv1(F.relu(self.bn1(x)))

网络搭建

class NetC_MNIST(nn.Module):
    def __init__(self):
        super(NetC_MNIST, self).__init__()
        self.conv1 = nn.Conv2d(1, 32, (3, 3), 2, 1)  # 14
        self.relu1 = nn.ReLU(inplace=True)
        self.layer2 = MNISTBlock(32, 64, 2)  # 7
        self.layer3 = MNISTBlock(64, 64, 2)  # 4
        self.flatten = nn.Flatten()
        self.linear6 = nn.Linear(64 * 4 * 4, 512)
        self.relu7 = nn.ReLU(inplace=True)
        self.dropout8 = nn.Dropout(0.3)
        self.linear9 = nn.Linear(512, 10)

    def forward(self, x):
        for module in self.children():
            x = module(x)
        return x

二、utils文件

1、dataloader.py

导入库

import csv
import kornia.augmentation as A
import random
import numpy as np

from PIL import Image
from torch.utils.tensorboard import SummaryWriter

ToNumpy

tensor张量和numpy之间转化

class ToNumpy:
    def __call__(self, x):
        x = np.array(x)
        if len(x.shape) == 2:
            x = np.expand_dims(x, axis=2)
        return x

ProbTransform

p为概率，即self.f(x)执行概率

class ProbTransform(torch.nn.Module):
    def __init__(self, f, p=1):
        super(ProbTransform, self).__init__()
        self.f = f
        self.p = p

    def forward(self, x):  # , **kwargs):
        if random.random() < self.p:
            return self.f(x)
        else:
            return x

该文件作用是加载数据

utils.py

导入库

import os
import sys
import time
import math
import torch

import torch.nn as nn
import torch.nn.init as init

get_mean_and_std

计算平均和标准值

def get_mean_and_std(dataset):
    dataloader = torch.utils.data.DataLoader(dataset, batch_size=1, shuffle=True, num_workers=2)
    mean = torch.zeros(3)
    std = torch.zeros(3)
    print("==> Computing mean and std..")
    for inputs, targets in dataloader:
        for i in range(3):
            mean[i] += inputs[:, i, :, :].mean()
            std[i] += inputs[:, i, :, :].std()
    mean.div_(len(dataset))
    std.div_(len(dataset))
    return mean, std

init_params

初始化神经层的参数

def init_params(net):
    for m in net.modules():
        if isinstance(m, nn.Conv2d):
            init.kaiming_normal(m.weight, mode="fan_out")
            if m.bias:
                init.constant(m.bias, 0)
        elif isinstance(m, nn.BatchNorm2d):
            init.constant(m.weight, 1)
            init.constant(m.bias, 0)
        elif isinstance(m, nn.Linear):
            init.normal(m.weight, std=1e-3)
            if m.bias:
                init.constant(m.bias, 0)

改python文件主要用于计算一些值、初始化参数，通过输出实现人机交互
