spark源码跟踪(八)累加器Accumulators

累加器Accumulators

一，累加器作用及其原理

1.1，作用

可实现分布式计数或求和；可以在spark application运行UI中显示其值，便于调试。

1.2，原理

在Driver端中定义的累加器Accumulators对象，跟随各spark task任务分发到Executor端，反序列化后的Accumulators副本对象各自执行累加操作（add），task任务执行执行完毕后，Driver端对返回的多个Accumulators副本对象执行合并操作（merge）。

二，累加器关键源码跟踪阅读

2.1，测试代码

def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[3]")
    val sparkContext=new SparkContext(sparkConnf)
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    var sum=0
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    rdd.foreach(num=>{sum=sum+num
      sumAcc.add(num)
      println("----excutor:----sumACC="+sumAcc)})
    println("---------sum="+sum)
    println("---------sumAcc="+sumAcc.value)
    sparkContext.stop()}

关键日志：

----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 3)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 7)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 12)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 1)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 3)
---------sum=0
---------sumAcc=15

2.2，跟踪源码

2.2.1，add调用

SparkContext.scala


  /**
   * Create and register a long accumulator, which starts with 0 and accumulates inputs by `add`.
   */
  def longAccumulator(name: String): LongAccumulator ={
    val acc = new LongAccumulator
    register(acc, name)
    acc
  }

  /**
   * Register the given accumulator with given name.
   *
   * @note Accumulators must be registered before use, or it will throw exception.
   */
  def register(acc: AccumulatorV2[_, _], name: String): Unit ={
    acc.register(this, name = Option(name))}

AccumulatorV2.scala

 private[spark] def register(
      sc: SparkContext,
      name: Option[String]= None,
      countFailedValues: Boolean =false): Unit ={if(this.metadata != null){
      throw new IllegalStateException("Cannot register an Accumulator twice.")}
    this.metadata = AccumulatorMetadata(AccumulatorContext.newId(), name, countFailedValues)
    AccumulatorContext.register(this)
    sc.cleaner.foreach(_.registerAccumulatorForCleanup(this))}

AccumulatorContext


  /**
   * This global map holds the original accumulator objects that are created on the driver.
   * It keeps weak references to these objects so that accumulators can be garbage-collected
   * once the RDDs and user-code that reference them are cleaned up.
   * TODO: Don't use a global map; these should be tied to a SparkContext (SPARK-13051).
   */
  private val originals = new ConcurrentHashMap[Long, jl.ref.WeakReference[AccumulatorV2[_, _]]]

  /**
   * Registers an [[AccumulatorV2]] created on the driver such that it can be used on the executors.
   *
   * All accumulators registered here can later be used as a container for accumulating partial
   * values across multiple tasks. This is what `org.apache.spark.scheduler.DAGScheduler` does.
   * Note: if an accumulator is registered here, it should also be registered with the active
   * context cleaner for cleanup so as to avoid memory leaks.
   *
   * If an [[AccumulatorV2]] with the same ID was already registered, this does nothing instead
   * of overwriting it. We will never register same accumulator twice, this is just a sanity check.
   */
  def register(a: AccumulatorV2[_, _]): Unit ={
    originals.putIfAbsent(a.id, new jl.ref.WeakReference[AccumulatorV2[_, _]](a))}

val sumAcc = sparkContext.longAccumulator("sumAcc")

这行代码创建了一个LongAccumulator类型的累加器，并做了一些列注册工作，并返回了一个对象。
接下来rdd.foreach是一个行动操作：

  /**
   * Applies a function f to all elements of this RDD.
   */
  def foreach(f: T => Unit): Unit = withScope {
    val cleanF = sc.clean(f)
    sc.runJob(this, (iter: Iterator[T])=> iter.foreach(cleanF))}

这里runJon的第二个参数的实际内容大致为

(iter: Iterator[Int])=>iter.foreach(num=>{sum=sum+num
        sumAcc.add(sum)
        println("----excutor:----sumACC="+sumAcc)})

这个函数在那执行？是在task类的runTask方法中执行的。
ResultTask.scala

 override def runTask(context: TaskContext): U ={
    // Deserialize the RDD and the func using the broadcast variables.
    val threadMXBean = ManagementFactory.getThreadMXBean
    val deserializeStartTimeNs = System.nanoTime()
    val deserializeStartCpuTime =if(threadMXBean.isCurrentThreadCpuTimeSupported){
      threadMXBean.getCurrentThreadCpuTime
    }else 0L
    val ser = SparkEnv.get.closureSerializer.newInstance()
    val (rdd, func)= ser.deserialize[(RDD[T], (TaskContext, Iterator[T])=> U)](
      ByteBuffer.wrap(taskBinary.value), Thread.currentThread.getContextClassLoader)
    _executorDeserializeTimeNs = System.nanoTime() - deserializeStartTimeNs
    _executorDeserializeCpuTime =if(threadMXBean.isCurrentThreadCpuTimeSupported){
      threadMXBean.getCurrentThreadCpuTime - deserializeStartCpuTime
    }else 0L

    func(context, rdd.iterator(partition, context))}

这里反序列化出来的func函数的第二个参数中就封装了测试代码中rdd.foreach中传入的用户代码。

(iter: Iterator[Int])=>iter.foreach(num=>{sum=sum+num
        sumAcc.add(sum)
        println("----excutor:----sumACC="+sumAcc)})

func(context, rdd.iterator(partition, context)) 执行func函数。
rdd.iterator返回该task负责的rdd一个分区的所有数据组成的迭代器Iterator并作为参数传入func中，在其函数体中遍历Iterator中数据并挨个执行用户自定义的逻辑代码。
结论一：所以sumAcc.add(sum)的执行次数与行动操作返回的数据元素数量一致。

2.2.2，merge调用

一个stage执行完毕后，executor会和ApplicationMaster通讯发送
CompletionEvent对象。
DAGSchedulerEventProcessLoop.scala

private def doOnReceive(event: DAGSchedulerEvent): Unit = event match {case JobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties)=>
      dagScheduler.handleJobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties)case MapStageSubmitted(jobId, dependency, callSite, listener, properties)=>
      dagScheduler.handleMapStageSubmitted(jobId, dependency, callSite, listener, properties)case StageCancelled(stageId, reason)=>
      dagScheduler.handleStageCancellation(stageId, reason)case JobCancelled(jobId, reason)=>
      dagScheduler.handleJobCancellation(jobId, reason)case JobGroupCancelled(groupId)=>
      dagScheduler.handleJobGroupCancelled(groupId)case AllJobsCancelled =>
      dagScheduler.doCancelAllJobs()case ExecutorAdded(execId, host)=>
      dagScheduler.handleExecutorAdded(execId, host)case ExecutorLost(execId, reason)=>
      val workerLost = reason match {case SlaveLost(_, true)=>truecase _ =>false}
      dagScheduler.handleExecutorLost(execId, workerLost)case WorkerRemoved(workerId, host, message)=>
      dagScheduler.handleWorkerRemoved(workerId, host, message)case BeginEvent(task, taskInfo)=>
      dagScheduler.handleBeginEvent(task, taskInfo)case SpeculativeTaskSubmitted(task)=>
      dagScheduler.handleSpeculativeTaskSubmitted(task)case GettingResultEvent(taskInfo)=>
      dagScheduler.handleGetTaskResult(taskInfo)case completion: CompletionEvent =>
      dagScheduler.handleTaskCompletion(completion)case TaskSetFailed(taskSet, reason, exception)=>
      dagScheduler.handleTaskSetFailed(taskSet, reason, exception)case ResubmitFailedStages =>
      dagScheduler.resubmitFailedStages()}

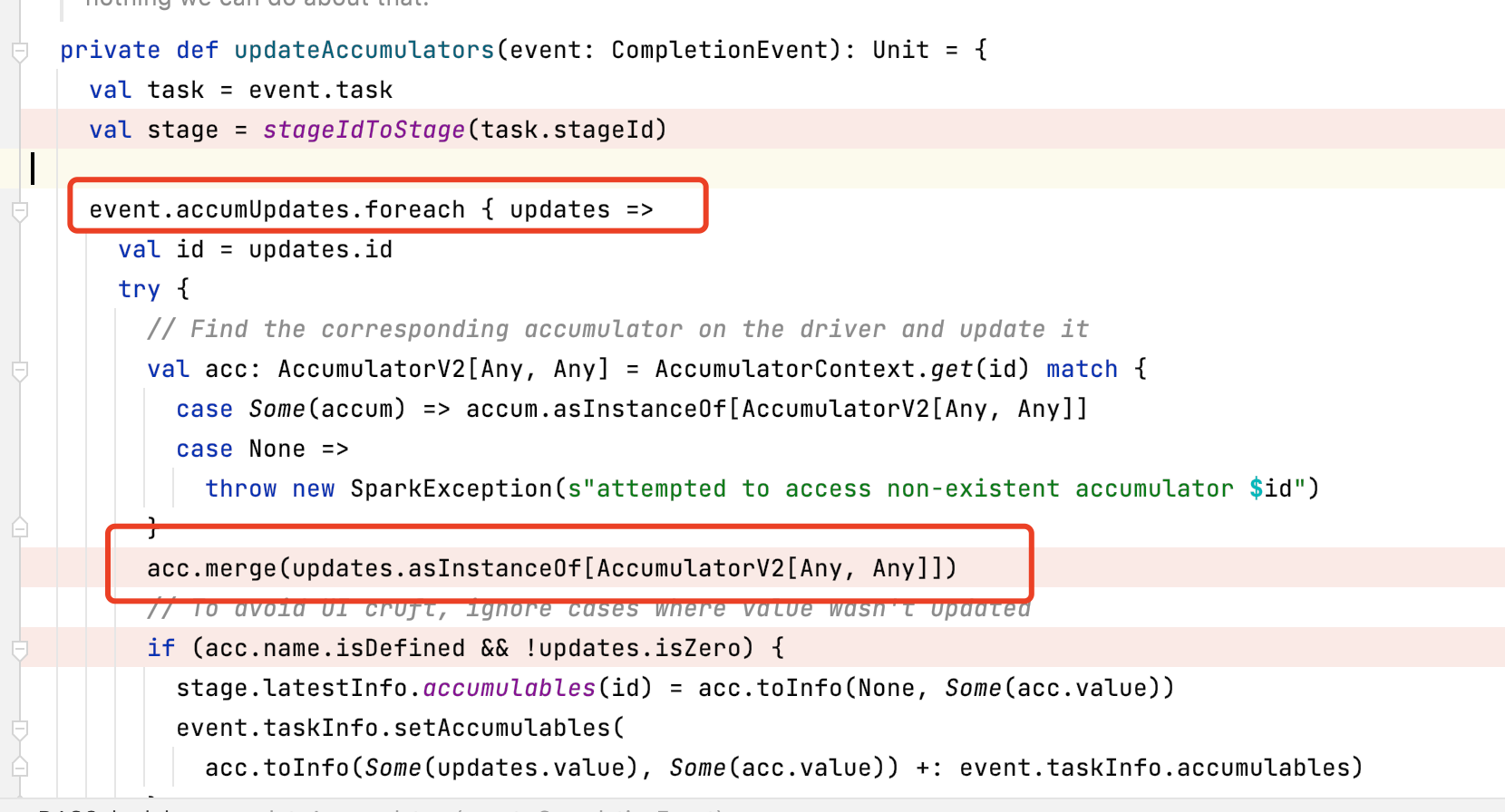

最终会调用updateAccumulators(event: CompletionEvent): Unit方法合并所有的累加器。
在这里插入图片描述
测试代码中sum=sum+num执行次数和 sumAcc.add(num)执行情况一摸一样，都是分散在各个executor中执行的，但是其结果没有回传到Driver端，所以Driver端的sum结果一直是初始值。

三，累加器在行动算子和转换算子中执行有何不同

上面写的源码跟踪里累加器是写在行动操作中的，与写在转换操作中有什么不一样？

3.1，测试代码

def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      println("----transfer:----sumACC="+sumAcc)
      num
    })
    mapRDD.foreach(num=>{
      sumAcc.add(num)
      println("----action:----sumACC="+sumAcc)})
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()}

在转换操作中执行的add操作显然是在rdd的compute方法中被调用的，先于行动操作执行。
关键日志：

----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 1)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 2)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 4)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 6)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 3)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 6)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 10)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 14)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 19)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 24)
----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 30)

累加器add操作执行了两次，结果是30不是15。

四，累加器级别

累加器是application级别的，如果一个application中有多个行动操作或者有检查点（检查点是一个独立的job，参考：https://cangchen.blog.csdn.net/article/details/122020410）的情况，累加器的值可能与预期的不一致。

4.1,检查点与累加器

 def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
    sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
    mapRDD.checkpoint()
    mapRDD.foreach(num=>{
      println(num)})
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()}

结果：

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 30)

累加器的add操作是在转换操作map中执行的，计算时执行了两次，第一次是在行动操作foreach 提交的job中执行的，第二次是检查点提交的job中执行，要避免检查点重复执行add，可使用cache。

def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
    sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
    mapRDD.checkpoint()
    mapRDD.cache()
    mapRDD.foreach(num=>{
      println(num)})
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()}

结果：

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 15)

cache会缓存数据避免rdd的compute函数再次调用，所以累加器只执行了一次。

4.2 多个行动操作与累加器

 def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
   // sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
   // mapRDD.checkpoint()
    //mapRDD.cache()
    mapRDD.foreach(num=>{
      println(num)})
    mapRDD.foreach(num=>{
      println(num)})
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()}

结果：

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 30)

两个行动操作生成两个独立的job，累加器执行了两次。同样使用cache也能避免这种情况：

def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
   // sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
   // mapRDD.checkpoint()
    mapRDD.cache()
    mapRDD.foreach(num=>{
      println(num)})
    mapRDD.foreach(num=>{
      println(num)})
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()}

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 15)

五，自定义累加器

自定义累加器实现wordcount功能

package cchen.spark.sparkcore

import org.apache.spark.internal.Logging
import org.apache.spark.rdd.RDD
import org.apache.spark.util.{AccumulatorV2, LongAccumulator}import org.apache.spark.{SparkConf, SparkContext}import scala.collection.{Iterator, mutable}

class WordCount

object WordCount extends Logging{

  def main(args: Array[String]): Unit ={
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[3]")
    val sparkContext=new SparkContext(sparkConnf)
    val rdd = sparkContext.parallelize(Array("hello", "thank you", "thank you very much", "are you ok"), 2)
    val flat_rdd = rdd.flatMap(_.split(" ",-1))
    val wordCountACC = new WordCountAccumulator
    sparkContext.register(wordCountACC, "wordCountACC")
    flat_rdd.foreach(f=>{
      wordCountACC.add(f)})
    flat_rdd.cache()
    println("----reduceByKey result-----")
    flat_rdd.map(f=>(f,1)).reduceByKey(_+_).collect().map(f=>println(f._1+":"+f._2))
    println("----acc result-----")
    wordCountACC.value.map(f=>println(f._1+":"+f._2))

    sparkContext.stop()}}

class WordCountAccumulator extends AccumulatorV2[String,mutable.Map[String,Long]]{
  private var map=mutable.Map[String,Long]()

  override def isZero: Boolean = map.isEmpty

  override def copy(): AccumulatorV2[String, mutable.Map[String,Long]]={
    val newACC=new WordCountAccumulator()
    newACC.map=this.map.clone()
    newACC
  }

  override def reset(): Unit = map.clear()

  override def add(v: String): Unit ={
    val value=map.getOrElse(v,0L)
    map.put(v,value+1)}

  override def merge(other: AccumulatorV2[String, mutable.Map[String,Long]]): Unit =other match {case o: WordCountAccumulator =>
     o.value.map(f=>{
       val value=map.getOrElse(f._1,0L)
       map.put(f._1,value+f._2)})case _ =>
      throw new UnsupportedOperationException(
        s"Cannot merge ${this.getClass.getName} with ${other.getClass.getName}")}

  override def value: mutable.Map[String,Long]= map
}

结果：

----reduceByKey result-----
are:1
thank:2
hello:1
very:1
ok:1
you:3
much:1
----acc result-----
you:3
ok:1
are:1
very:1
thank:2
much:1
hello:1

使用累加器的方式速度应该更快，跟reduceByKey相比它没有shuffle过程。

六，总结

1，累加器的add操作实际执行的地方与客户代码中调用的地方有关系。
如果add在RDD转换操作中调用，则实际在RDD compute函数中被调用；如果在RDD行动操作中被调用，则在ResultTask runTask方法中被调用。都是在Excutor端执行
2，累加器的merge操作实际执行的地方在Driver端，每个job stage执行成功后执行累加器的merge操作。
3，累加器是application级别，多个行动操作或者单行动操作且有检查点checkpoint的情况下要注意“多加”的现象。

标签： 累加器 Accumulator Accumulator原理
本文转载自: https://blog.csdn.net/weixin_43172032/article/details/122051709
版权归原作者 cangchen@csdn 所有， 如有侵权，请联系我们删除。
登录后发布评论

“spark源码跟踪(八)累加器Accumulators”的评论:

还没有评论
关于作者
...
overfit同步小助手
文章同步
相关阅读

HarmonyOS Next 加密算法框架性能优化与安全考量

从“点”到“面”，热成像防爆手机如何为安全织就“透视网”？

怎么快速安全地调整磁盘分区的大小? 5 个免费分区管理器请收好

Cursor编辑器：10秒生成完美Git提交信息！

git开发中常用命令

SpringBoot整合JPA，步骤详解（图文结合）

【人工智能概述（一）】人工智能基本概概念、学派、发展历程与新一代人工智能

文章导航
