【AWS】API Gateway创建Rest API--从S3下载文件

一、背景

在不给AK,SK的前提下，用户查看s3上文件（从s3下载文件）

二、创建API

1、打开API Gateway，点击创建API，选择REST API

REST API和HTTP API区别：（来自AWS官网）

REST API 和 HTTP API 都是 RESTful API 产品。REST API 支持的功能比 HTTP API 多，而 HTTP API 在设计时功能就极少，因此能够以更低的价格提供。如果您需要如 API 密钥、每客户端节流、请求验证、AWS WAF 集成或私有 API 端点等功能，请选择 REST API。如果您不需要 REST API 中包含的功能，请选择 HTTP API。

2、 设置API名称，选择终端节点类型

终端节点类型：（来自AWS官网）

  1.     区域性（REGIONAL）：适用于同一区域中的客户端。当在 EC2 实例上运行的客户端调用同一区域中的 API，或 API 用于为具有高需求的少数客户端提供服务时，区域 API 可以降低连接开销。
  3.     还有边缘优化（EDGE）：最适合地理位置分散的客户端。API 请求将路由到最近的 CloudFront 接入点 (POP)。这是 API Gateway REST API 的默认终端节点类型。
  5.     私有（PRIVATE）：是一个只能使用接口 VPC 终端节点从 Amazon Virtual Private Cloud (VPC) 访问的 API 终端节点，该接口是您在 VPC 中创建的终端节点网络接口 (ENI)

三、配置API

1、进入刚创建好的API，点击资源页，创建资源及方法

1.1创建资源， / 代表根目录，右击选择创建资源

1.2创建方法，上传文件到s3，所以选择GET方法

1.3点击刚创建的方法，进入集成请求

1.3配置：

集成类型：AWS 服务

AWS区域：（选择相应的区域）

AWS服务：S3

AWS子域：（不用填）

HTTP方法：GET

操作类型：路径覆盖

路径覆盖（可选）：{bucket}/{object}

执行角色：（填写有执行API角色的ARN）

路径覆盖也可以把路径某部分hard code

在下方URL路径参数中填写路径参数映射关系

2、配置设置

翻到最下面，修改二进制媒体类型为 /

Content-Encoding可以根据需要修改

默认上传文件大小不超过10M

三、添加授权方

1、新建Lambda函数，来验证授权方，运行时选择 Node.js 16.x

代码如下：当header中account和password匹配上，则allow，否则deny

  1. exports.handler = function(event, context, callback) {
  2.     console.log('Received event:', JSON.stringify(event, null, 2));
  4.     // A simple request-based authorizer example to demonstrate how to use request
  5.     // parameters to allow or deny a request. In this example, a request is
  6.     // authorized if the client-supplied headerauth1 header, QueryString1
  7.     // query parameter, and stage variable of StageVar1 all match
  8.     // specified values of 'headerValue1', 'queryValue1', and 'stageValue1',
  9.     // respectively.
  11.     // Retrieve request parameters from the Lambda function input:
  12.     var headers = event.headers;
  13.     var queryStringParameters = event.queryStringParameters;
  14.     var pathParameters = event.pathParameters;
  15.     var stageVariables = event.stageVariables;
  16.
  17.     // Parse the input for the parameter values
  18.     var tmp = event.methodArn.split(':');
  19.     var apiGatewayArnTmp = tmp[5].split('/');
  20.     var awsAccountId = tmp[4];
  21.     var region = tmp[3];
  22.     var restApiId = apiGatewayArnTmp[0];
  23.     var stage = apiGatewayArnTmp[1];
  24.     var method = apiGatewayArnTmp[2];
  25.     var resource = '/'; // root resource
  26.     if (apiGatewayArnTmp[3]) {
  27.         resource += apiGatewayArnTmp[3];
  28.     }
  29.
  30.     // Perform authorization to return the Allow policy for correct parameters and
  31.     // the 'Unauthorized' error, otherwise.
  32.     var authResponse = {};
  33.     var condition = {};
  34.     condition.IpAddress = {};
  35.
  36.     if (headers.account === ""
  37.         && headers.password === "") {
  38.         callback(null, generateAllow('me', event.methodArn));
  39.     }else {
  40.         callback("Unauthorized");
  41.     }
  42. }
  43.
  44. // Help function to generate an IAM policy
  45. var generatePolicy = function(principalId, effect, resource) {
  46.     // Required output:
  47.     var authResponse = {};
  48.     authResponse.principalId = principalId;
  49.     if (effect && resource) {
  50.         var policyDocument = {};
  51.         policyDocument.Version = '2012-10-17'; // default version
  52.         policyDocument.Statement = [];
  53.         var statementOne = {};
  54.         statementOne.Action = 'execute-api:Invoke'; // default action
  55.         statementOne.Effect = effect;
  56.         statementOne.Resource = resource;
  57.         policyDocument.Statement[0] = statementOne;
  58.         authResponse.policyDocument = policyDocument;
  59.     }
  60.     // Optional output with custom properties of the String, Number or Boolean type.
  61.     authResponse.context = {
  62.         "account": '',
  63.         "password": '',
  64.         "booleanKey": true
  65.     };
  66.     return authResponse;
  67. }
  68.
  69. var generateAllow = function(principalId, resource) {
  70.     return generatePolicy(principalId, 'Allow', resource);
  71. }
  72.
  73. var generateDeny = function(principalId, resource) {
  74.     return generatePolicy(principalId, 'Deny', resource);
  75. }

2、创建授权方

授权方名称

类型：选择Lambda

Lambda函数：填写刚创建好的Lambda函数名称

Lambda调用角色：填写调用Lambda函数的角色

Lambda事件负载：选择请求

身份来源：选择标头，添加account和password

授权缓存：取消启用

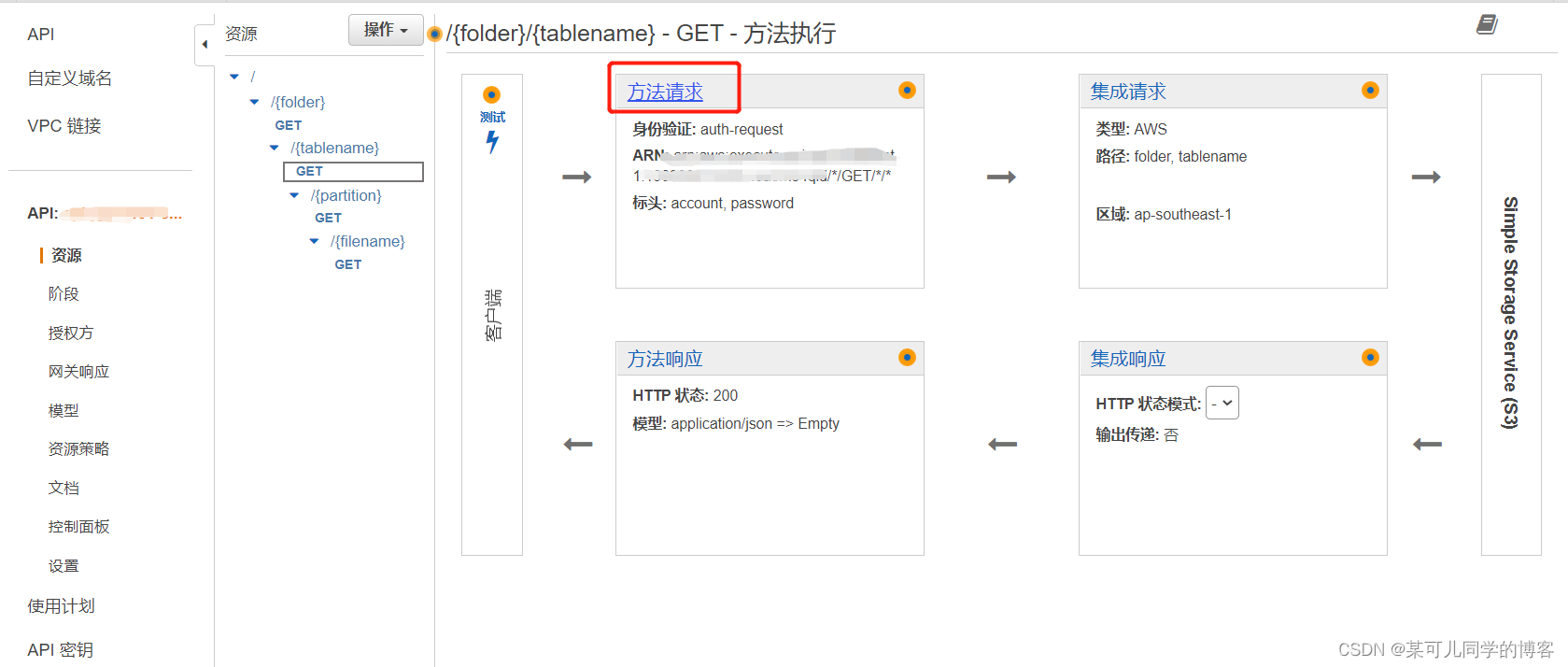

三、配置授权方

选择 添加授权方的路径资源方法中的方法请求

授权选择配置好的授权方名称

请求验证程序:无

需要API密钥:否

HTTP请求标头:将account和password配置进来

四、部署API

API配置完成后，右击根目录，部署API， 选择部署阶段，点击部署

注意：每次对API进行更改后要重新部署一下

五、测试API

测试通过两种方式：①Postman ②python代码

获取URL链接

1、Postman

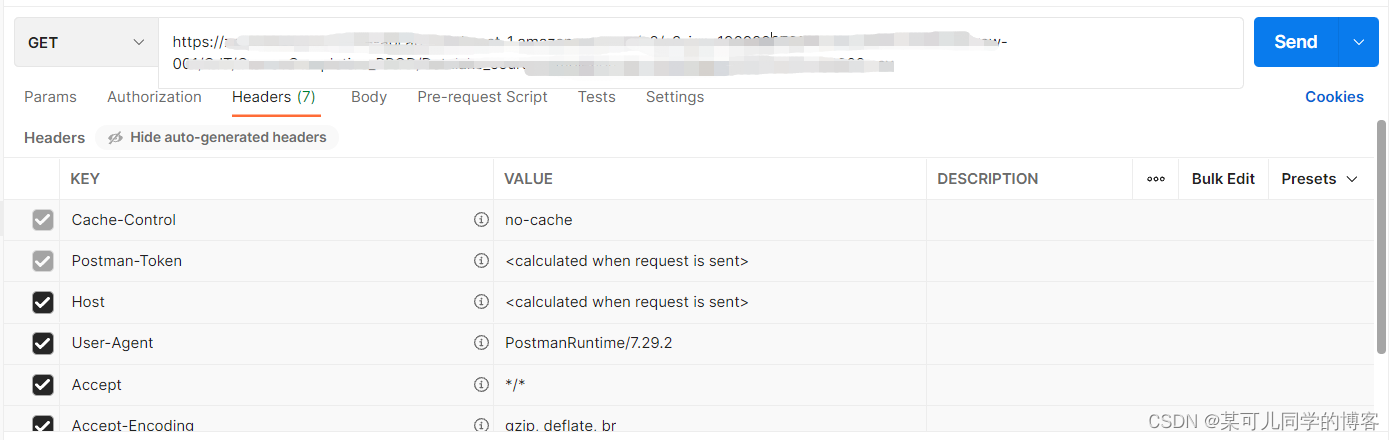

进入Postman，添加PUT请求，复制URL链接，在其后添加要下载文件的S3的路径，点击send，即可在下方看到请求结果

2、python代码

  1. import json
  2. import requests
  4. def call_get_api(_url,_headers):
  5.     res = requests.get(url=_url, headers=_headers)
  6.     return res
  8. def download_s3(bucket,key,local_file):
  9.     # api gateway call url
  10.     url_ip = ""
  11.     # generate the url
  12.     url = url_ip + bucket + key
  14.     # headers
  15.     headers = {"account": "", "password": ""}
  17.     # call the api2s3 method
  18.     res = call_get_api(url, headers)
  19.     res.encoding = 'utf-8'
  20.     data = res.text
  21.     if res.status_code == 200:
  22.         print(res.status_code)
  23.         print(data)
  24.         with open(local_file, 'wb') as f:
  25.             # str通过encode()方法可以转换为bytes
  26.             f.write(data.encode())
  27.     else:
  28.         print(res)
  30. if __name__ == '__main__':
  31.     # s3 file
  32.     bucket = ''
  33.     key = ''
  35.     # local file name
  36.     local_file = ''
  37.     download_s3(bucket, key, local_file)

六、通过CloudFormation新建API

yaml文件代码如下

  1. AWSTemplateFormatVersion: '2010-09-09'
  2. Description : Template to provision ETL Workflow for api gateway
  3. Parameters:
  4.   Region:
  5.     Description: 'Specify the Region for resource.'
  6.     Type: String
  7.     Default: ase1
  8.   Iteration:
  9.     Type: String
  10.     Description: 'Specify the Iteration for Lambda.'
  11.     Default: '001'
  12.   S3Iteration:
  13.     Type: String
  14.     Description: 'Specify the Iteration for S3'
  15.     Default: '001'
  16.   IAMIteration:
  17.     Type: String
  18.     Description: 'Specify the Iteration for IAM roles.'
  19.     Default: '001'
  21. Resources:
  22.   ApigatewayRestAPI:
  23.     Type: AWS::ApiGateway::RestApi
  24.     Properties:
  25.       Name: api-downloads3-${Iteration}
  26.       BinaryMediaTypes:
  27.         - "*/*"
  28.       Description: create api to download file from s3
  29.       Mode: overwrite
  30.       EndpointConfiguration:
  31.         Types:
  32.           - REGIONAL
  33.
  34.   ApigatewayAuthorizer:
  35.     Type: AWS::ApiGateway::Authorizer
  36.     Properties:
  37.       AuthorizerCredentials: "arn:aws:iam::${AWS::AccountId}:role/iamr-replication-${IAMIteration}"
  38.       AuthorizerResultTtlInSeconds : 0
  39.       AuthorizerUri: "arn:aws:apigateway:${AWS::Region}:lambda:path/2015-03-31/functions/arn:aws:lambda:${AWS::Region}:${AWS::AccountId}:function:lamb-apigw-authorizer-${S3Iteration}/invocations"
  40.       Type : REQUEST
  41.       AuthType: custom
  42.       RestApiId:
  43.         !Ref  ApigatewayRestAPI
  44.       Name: auth-request
  45.       IdentitySource : method.request.header.account,method.request.header.password
  47.   ApigatewayResourceFolder:
  48.     Type: AWS::ApiGateway::Resource
  49.     Properties:
  50.       RestApiId:
  51.         !Ref ApigatewayRestAPI
  52.       PathPart: "{folder}"
  53.       ParentId: !GetAtt
  54.         - ApigatewayRestAPI
  55.         - RootResourceId
  57.   ApigatewayMethodFolder:
  58.     Type: AWS::ApiGateway::Method
  59.     Properties:
  60.       AuthorizerId:
  61.         !Ref ApigatewayAuthorizer
  62.       AuthorizationType: custom
  63.       RequestParameters: {
  64.         "method.request.path.folder": true,
  65.         "method.request.header.account": true,
  66.         "method.request.header.password": true
  67.       }
  68.       HttpMethod: GET
  69.       MethodResponses:
  70.         - StatusCode: 200
  71.           ResponseModels:
  72.             application/json: Empty
  73.       RestApiId:
  74.         !Ref ApigatewayRestAPI
  75.       ResourceId: !GetAtt
  76.         - ApigatewayResourceFolder
  77.         - ResourceId
  78.       Integration:
  79.         Type: AWS
  80.         Credentials: "arn:aws:iam::${AWS::AccountId}:role/iamr-replication-${IAMIteration}"
  81.         IntegrationHttpMethod: GET
  82.         IntegrationResponses:
  83.           - StatusCode: 200
  84.         PassthroughBehavior: when_no_match
  85.         Uri: "arn:aws:apigateway:${AWS::Region}:s3:path/{folder}"
  86.         RequestParameters: {
  87.             "integration.request.path.folder" : "method.request.path.folder"
  88.           }
  90.   ApigatewayResourceTablename:
  91.     Type: AWS::ApiGateway::Resource
  92.     Properties:
  93.       RestApiId:
  94.         !Ref ApigatewayRestAPI
  95.       PathPart: "{tablename}"
  96.       ParentId:
  97.         !Ref ApigatewayResourceFolder
  99.   ApigatewayMethodTablename:
  100.     Type: AWS::ApiGateway::Method
  101.     Properties:
  102.       AuthorizerId:
  103.         !Ref ApigatewayAuthorizer
  104.       AuthorizationType: custom
  105.       RequestParameters: {
  106.         "method.request.path.folder": true,
  107.         "method.request.path.tablename": true,
  108.         "method.request.header.account": true,
  109.         "method.request.header.password": true
  110.       }
  111.       HttpMethod: GET
  112.       MethodResponses:
  113.         - StatusCode: 200
  114.           ResponseModels:
  115.             application/json: Empty
  116.       RestApiId:
  117.         !Ref ApigatewayRestAPI
  118.       ResourceId: !GetAtt
  119.         - ApigatewayResourceTablename
  120.         - ResourceId
  121.       Integration:
  122.         Type: AWS
  123.         Credentials: "arn:aws:iam::${AWS::AccountId}:role/iamr-replication-${IAMIteration}"
  124.         IntegrationHttpMethod: GET
  125.         IntegrationResponses:
  126.           - StatusCode: 200
  127.         PassthroughBehavior: when_no_match
  128.         Uri: "arn:aws:apigateway:${AWS::Region}:s3:path/{folder}/{tablename}"
  129.         RequestParameters: {
  130.             "integration.request.path.folder" : "method.request.path.folder",
  131.             "integration.request.path.tablename" : "method.request.path.tablename"
  132.           }
  134.   ApigatewayResourcePartition:
  135.     Type: AWS::ApiGateway::Resource
  136.     Properties:
  137.       RestApiId:
  138.         !Ref ApigatewayRestAPI
  139.       PathPart: "{partition}"
  140.       ParentId:
  141.         !Ref ApigatewayResourceTablename
  143.   ApigatewayMethodPartition:
  144.     Type: AWS::ApiGateway::Method
  145.     Properties:
  146.       AuthorizerId:
  147.         !Ref ApigatewayAuthorizer
  148.       AuthorizationType: custom
  149.       RequestParameters: {
  150.         "method.request.path.folder": true,
  151.         "method.request.path.tablename": true,
  152.         "method.request.path.partition": true,
  153.         "method.request.header.account": true,
  154.         "method.request.header.password": true
  155.       }
  156.       HttpMethod: GET
  157.       MethodResponses:
  158.         - StatusCode: 200
  159.           ResponseModels:
  160.             application/json: Empty
  161.       RestApiId:
  162.         !Ref ApigatewayRestAPI
  163.       ResourceId: !GetAtt
  164.         - ApigatewayResourcePartition
  165.         - ResourceId
  166.       Integration:
  167.         Type: AWS
  168.         Credentials: "arn:aws:iam::${AWS::AccountId}:role/iamr-replication-${IAMIteration}"
  169.         IntegrationHttpMethod: GET
  170.         IntegrationResponses:
  171.           - StatusCode: 200
  172.         PassthroughBehavior: when_no_match
  173.         Uri: "arn:aws:apigateway:${AWS::Region}:s3:path/{folder}/{tablename}/{partition}"
  174.         RequestParameters: {
  175.             "integration.request.path.partition" : "method.request.path.partition",
  176.             "integration.request.path.folder" : "method.request.path.folder",
  177.             "integration.request.path.tablename" : "method.request.path.tablename"
  178.           }
  180.   ApigatewayResourceFilename:
  181.     Type: AWS::ApiGateway::Resource
  182.     Properties:
  183.       RestApiId:
  184.         !Ref ApigatewayRestAPI
  185.       PathPart: "{filename}"
  186.       ParentId:
  187.         !Ref ApigatewayResourcePartition
  189.   ApigatewayMethodFilename:
  190.     Type: AWS::ApiGateway::Method
  191.     Properties:
  192.       AuthorizerId:
  193.         !Ref ApigatewayAuthorizer
  194.       AuthorizationType: custom
  195.       RequestParameters: {
  196.         "method.request.path.folder": true,
  197.         "method.request.path.tablename": true,
  198.         "method.request.path.partition": true,
  199.         "method.request.path.filename": true,
  200.         "method.request.header.account": true,
  201.         "method.request.header.password": true
  202.       }
  203.       HttpMethod: GET
  204.       MethodResponses:
  205.         - StatusCode: 200
  206.           ResponseModels:
  207.             application/json: Empty
  208.       RestApiId:
  209.         !Ref ApigatewayRestAPI
  210.       ResourceId: !GetAtt
  211.         - ApigatewayResourceFilename
  212.         - ResourceId
  213.       Integration:
  214.         Type: AWS
  215.         Credentials: "arn:aws:iam::${AWS::AccountId}:role/iamr-replication-${IAMIteration}"
  216.         IntegrationHttpMethod: GET
  217.         IntegrationResponses:
  218.           - StatusCode: 200
  219.         PassthroughBehavior: when_no_match
  220.         Uri: "arn:aws:apigateway:${AWS::Region}:s3:path/{folder}/{tablename}/{partition}/{filename}"
  221.         RequestParameters: {
  222.             "integration.request.path.partition" : "method.request.path.partition",
  223.             "integration.request.path.filename" : "method.request.path.filename",
  224.             "integration.request.path.folder" : "method.request.path.folder",
  225.             "integration.request.path.tablename" : "method.request.path.tablename"
  226.           }
  227.
  228.   ApigatewayDeploymentv1:
  229.     DependsOn: ApigatewayMethodFilename
  230.     Type: AWS::ApiGateway::Deployment
  231.     Properties:
  232.       RestApiId:
  233.         !Ref ApigatewayRestAPI
  234.       StageName : v1
  236.   PermissionToInvokeLambda:
  237.     Type: AWS::Lambda::Permission
  238.     Properties:
  239.       FunctionName: lamb-apigw-authorizer-${Iteration}
  240.       Action: "lambda:InvokeFunction"
  241.       Principal: "apigateway.amazonaws.com"
  242.       SourceArn: !Sub
  243.         - "arn:aws:execute-api:${AWS::Region}:${AWS::AccountId}:${APiId}/authorizers/${AuthorizerId}"
  244.         - APiId:
  245.             !Ref ApigatewayRestAPI
  246.           AuthorizerId:
  247.             !Ref ApigatewayAuthorizer
  249. Outputs:
  250.   RootResourceId:
  251.     Value: !GetAtt ApigatewayRestAPI.RootResourceId
  252.   AuthorizerId:
  253.     Value: !GetAtt ApigatewayAuthorizer.AuthorizerId
标签： aws gateway 云计算
本文转载自: https://blog.csdn.net/weixin_41758646/article/details/128456737
版权归原作者 某可儿同学的博客 所有， 如有侵权，请联系我们删除。
登录后发布评论

“【AWS】API Gateway创建Rest API--从S3下载文件”的评论:

还没有评论
关于作者
...
overfit同步小助手
文章同步
相关阅读

网络安全法-网络运行安全

使用selenium/drissionpage时如何阻止chrome自动跳转http到https

docker desktop 里部署的Open WebUI 管理员密码忘记了的处理方法

在ubuntu20.04中搭建onsite比赛运行环境

利用开源的低代码表单设计器FcDesigner高效管理和渲染复杂表单结构

Kafka学习笔记

【前端】浏览器输入url到页面呈现发生了什么？

文章导航
没有找到文章内容分段。。。
