Swin Transformer做backbone的YoloX目标检测

首先YoloX的项目代码来自Bubbliiiing，Swin Transformer的项目代码来自太阳花的小绿豆。感谢两位大佬在GitHub上面提供的资源。

我的GitHub链接：https://github.com/zhengzihe/YoloX-based-on-Swin-Transformer

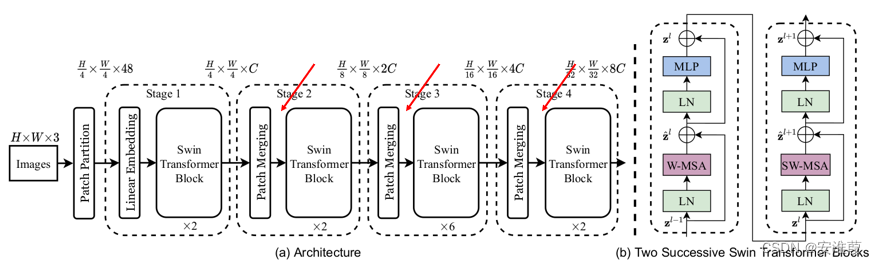

Swin Transformer取如下三个有效特征层：

其中代码部分PatchMerging和SwinTransformerBlock合并在了一起，所以取出的这三个有效特征层分别为下采样8倍，16倍和32倍的特征层。正好对应下面yolox的cspdarknet输入的下采样8倍，16倍和32倍的三个有效特征层。

在左边三个箭头更换为Swin Transformer输出的特征。即可完成骨干网络的替换。

引入骨干网络

我是直接复制model.py文件到我的nets/目录下，方便yolo.py文件import。
model.py文件来自太阳花的小绿豆GitHub下deep-learning-for-image-processing-master/pytorch_classification/swin_transformer/model.py

修改模型搭建过程：

# build layers
        self.layer1 = BasicLayer(dim=int(embed_dim *2**0),
                                depth=depths[0],
                                num_heads=num_heads[0],
                                window_size=window_size,
                                mlp_ratio=self.mlp_ratio,
                                qkv_bias=qkv_bias,
                                drop=drop_rate,
                                attn_drop=attn_drop_rate,
                                drop_path=dpr[sum(depths[:0]):sum(depths[:0+1])],
                                norm_layer=norm_layer,
                                downsample=PatchMerging if(0< self.num_layers -1)elseNone,
                                use_checkpoint=use_checkpoint)

        self.layer2 = BasicLayer(dim=int(embed_dim *2**1),
                                depth=depths[1],
                                num_heads=num_heads[1],
                                window_size=window_size,
                                mlp_ratio=self.mlp_ratio,
                                qkv_bias=qkv_bias,
                                drop=drop_rate,
                                attn_drop=attn_drop_rate,
                                drop_path=dpr[sum(depths[:1]):sum(depths[:1+1])],
                                norm_layer=norm_layer,
                                downsample=PatchMerging if(1< self.num_layers -1)elseNone,
                                use_checkpoint=use_checkpoint)

        self.layer3 = BasicLayer(dim=int(embed_dim *2**2),
                                depth=depths[2],
                                num_heads=num_heads[2],
                                window_size=window_size,
                                mlp_ratio=self.mlp_ratio,
                                qkv_bias=qkv_bias,
                                drop=drop_rate,
                                attn_drop=attn_drop_rate,
                                drop_path=dpr[sum(depths[:2]):sum(depths[:2+1])],
                                norm_layer=norm_layer,
                                downsample=PatchMerging if(2< self.num_layers -1)elseNone,
                                use_checkpoint=use_checkpoint)

        self.layer4 = BasicLayer(dim=int(embed_dim *2**3),
                                depth=depths[3],
                                num_heads=num_heads[3],
                                window_size=window_size,
                                mlp_ratio=self.mlp_ratio,
                                qkv_bias=qkv_bias,
                                drop=drop_rate,
                                attn_drop=attn_drop_rate,
                                drop_path=dpr[sum(depths[:3]):sum(depths[:3+1])],
                                norm_layer=norm_layer,
                                downsample=PatchMerging if(3< self.num_layers -1)elseNone,
                                use_checkpoint=use_checkpoint)

修改forward函数：

defforward(self, x):# x: [B, L, C]
        x, H, W = self.patch_embed(x)
        x = self.pos_drop(x)
        feature4x = x
        # for layer in self.layers:#     x, H, W = layer(x, H, W)
        feature8x, H, W = self.layer1(feature4x, H, W)
        feature16x, H, W = self.layer2(feature8x, H, W)
        feature32x, H, W = self.layer3(feature16x, H, W)
        feature32x2, H, W = self.layer4(feature32x, H, W)# x = self.norm(x)  # [B, L, C]# x = self.avgpool(x.transpose(1, 2))  # [B, C, 1]# x = torch.flatten(x, 1)# x = self.head(x)return feature4x, feature8x, feature16x, feature32x, feature32x2

至此我们引入了feature下采样4，8，16，32，64倍的特征层，我们将使用8，16，32下采样倍率的部分。

YOLOPAFPN层修改

首先import进模型：

from.model import swin_base_patch4_window7_224

其次修改backbone：

        self.backbone = swin_base_patch4_window7_224()
        self.embed_dim = swin_base_patch4_window7_224().embed_dim

我这里使用的是base模块。

在__ init __函数中修改

        self.feature32x2feat3 = nn.Conv2d(self.embed_dim *8,int(in_channels[2]* width), kernel_size=1)
        self.feature16x2feat2 = nn.Conv2d(self.embed_dim *4,int(in_channels[1]* width), kernel_size=1)
        self.feature8x2feat1 = nn.Conv2d(self.embed_dim *2,int(in_channels[0]* width), kernel_size=1)

在forward函数中修改（加入到最前面）：

defforward(self,input):
        feature4x, feature8x, feature16x, feature32x, feature32x2 = self.backbone.forward(input)# print("orignalfeature32x2size:", feature32x2.size())# print("orignalfeature32size:", feature32x.size())# print("orignalfeature16size:", feature16x.size())# print("orignalfeature8size:", feature8x.size())# print("orignalfeature4size:", feature4x.size())
        feature32x_sqrt =int(math.sqrt(feature32x.size()[1]))
        feature16x_sqrt =int(math.sqrt(feature16x.size()[1]))
        feature8x_sqrt =int(math.sqrt(feature8x.size()[1]))

        channel_feature32 = feature32x.size()[2]
        channel_feature16 = feature16x.size()[2]
        channel_feature8 = feature8x.size()[2]

        feature32x = feature32x.permute(0,2,1).contiguous().view(-1, channel_feature32, feature32x_sqrt, feature32x_sqrt)# print("after reshape feature32:", feature32x.size())
        feature16x = feature16x.permute(0,2,1).contiguous().view(-1, channel_feature16, feature16x_sqrt, feature16x_sqrt)# print("after reshape feature16:", feature16x.size())
        feature8x = feature8x.permute(0,2,1).contiguous().view(-1, channel_feature8, feature8x_sqrt, feature8x_sqrt)# print("after reshpae feature8:", feature8x.size())

        feat3 = self.feature32x2feat3(feature32x)
        feat2 = self.feature16x2feat2(feature16x)
        feat1 = self.feature8x2feat1(feature8x)

将原本的feat3，feat2，feat1替换为使用Swin Transformer的特征。

修改配置phi == 'l’为其他值只会更改FPN层中的通道宽度。对swin transformer的backbone没有影响。

使用预训练权重

因为对模型的backbone进行了更改，因此无法载入GitHub上提供预训练权重，会报错key不匹配的问题。

这里有我使用voc2007数据集训练的预训练权重，可以使用（针对phi=‘l’）：

链接：https://pan.baidu.com/s/1FX6wMvcfE674UZYp4j8OCA
提取码：d4c8

    model_path =""# model_path 置为空，不读取预训练权重

#------------------------------------------------------------------#
    Init_Epoch          =0
    Freeze_Epoch        =0
    Freeze_batch_size   =16#------------------------------------------------------------------##   解冻阶段训练参数#   此时模型的主干不被冻结了，特征提取网络会发生改变#   占用的显存较大，网络所有的参数都会发生改变#   UnFreeze_Epoch          模型总共训练的epoch#   Unfreeze_batch_size     模型在解冻后的batch_size#------------------------------------------------------------------#
    UnFreeze_Epoch      =300
    Unfreeze_batch_size =16#------------------------------------------------------------------##   Freeze_Train    是否进行冻结训练#                   默认先冻结主干训练后解冻训练。#------------------------------------------------------------------#
    Freeze_Train        =False

需要将Freeze_Train 设置为 False，这样模型不加载预训练权重，所有层全部开始训练，非常占显存。

大功告成！

swin_transformer具体参数量：

swin_tiny_patch4_window7_224Total
GFLOPS:154.459G
Total params:55.674M

swin_small_patch4_window7_224
Total GFLOPS:224.729G
Total params:76.949M

swin_base_patch4_window7_224
Total GFLOPS:336.684G
Total params:115.169M
