五、多表查询
在讲解 SQL语句 的时候,讲解了DQL语句,也就是数据查询语句,但是之前讲解的查询都是单表查询,而本章节我们要学习的则是多表查询操作,主要从以下几个方面进行讲解。
5.1 多表关系
项目开发中,在进行数据库表结构设计时,会根据业务需求及业务模块之间的关系,分析并设计表结
构,由于业务之间相互关联,所以各个表结构之间也存在着各种联系,基本上分为三种:
- 一对多(多对一)
- 多对多
- 一对一

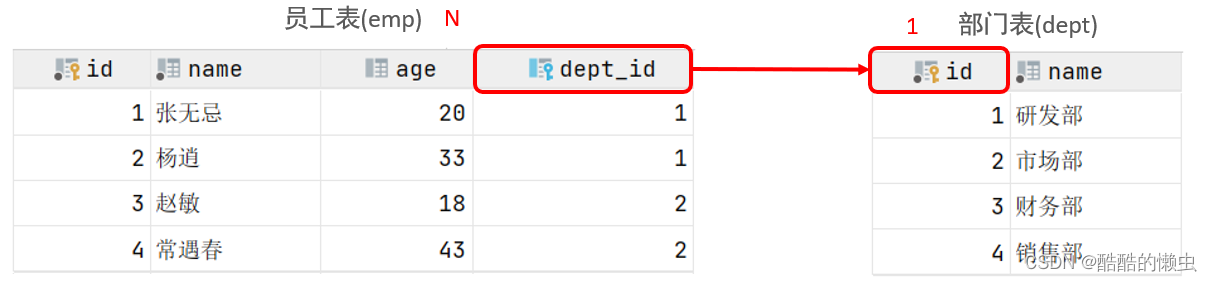

5.1.1 一对多
- 案例: 部门 与 员工的关系
- 关系: 一个部门对应多个员工,一个员工对应一个部门
- 实现: 在多的一方建立外键,指向一的一方的主键

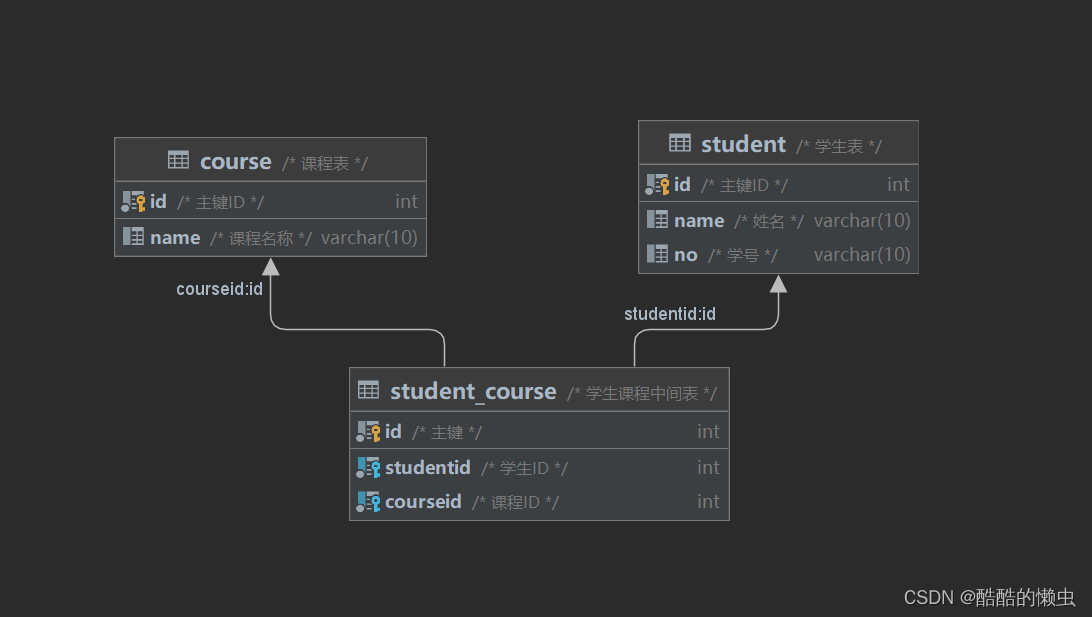

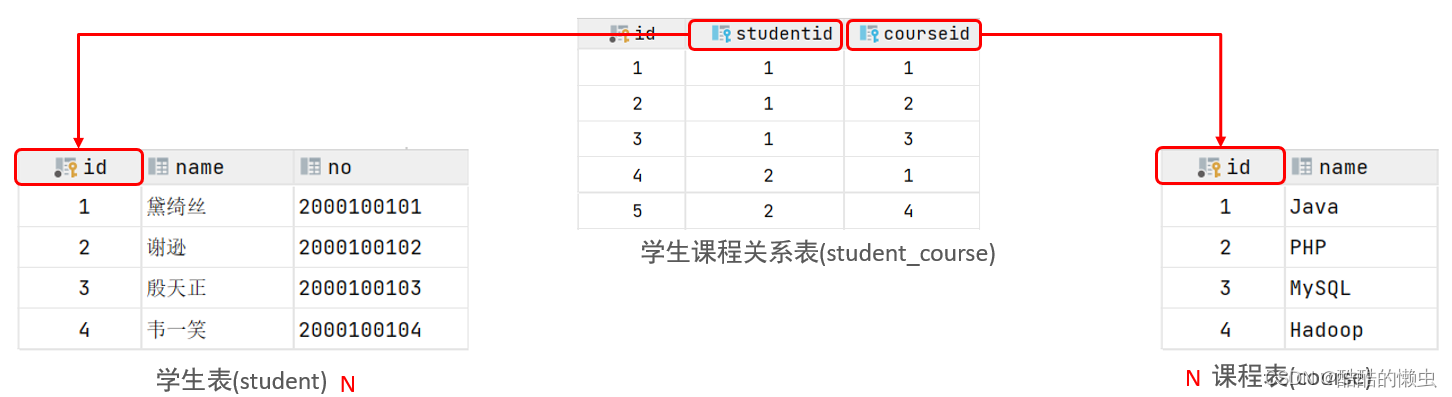

5.1.2 多对多
- 案例: 学生 与 课程的关系
- 关系: 一个学生可以选修多门课程,一门课程也可以供多个学生选择
- 实现: 建立第三张中间表,中间表至少包含两个外键,分别关联两方主键
对应的SQL脚本:
createtable student(
id intauto_incrementprimarykeycomment'主键ID',
name varchar(10)comment'姓名',novarchar(10)comment'学号')comment'学生表';insertinto student values(null,'黛绮丝','2000100101'),(null,'谢逊','2000100102'),(null,'殷天正','2000100103'),(null,'韦一笑','2000100104');createtable course(
id intauto_incrementprimarykeycomment'主键ID',
name varchar(10)comment'课程名称')comment'课程表';insertinto course values(null,'Java'),(null,'PHP'),(null,'MySQL'),(null,'Hadoop');createtable student_course(
id intauto_incrementcomment'主键'primarykey,
studentid intnotnullcomment'学生ID',
courseid intnotnullcomment'课程ID',constraint fk_courseid foreignkey(courseid)references course (id),constraint fk_studentid foreignkey(studentid)references student (id))comment'学生课程中间表';insertinto student_course values(null,1,1),(null,1,2),(null,1,3),(null,2,2),(null,2,3),(null,3,4);
5.1.3 一对一

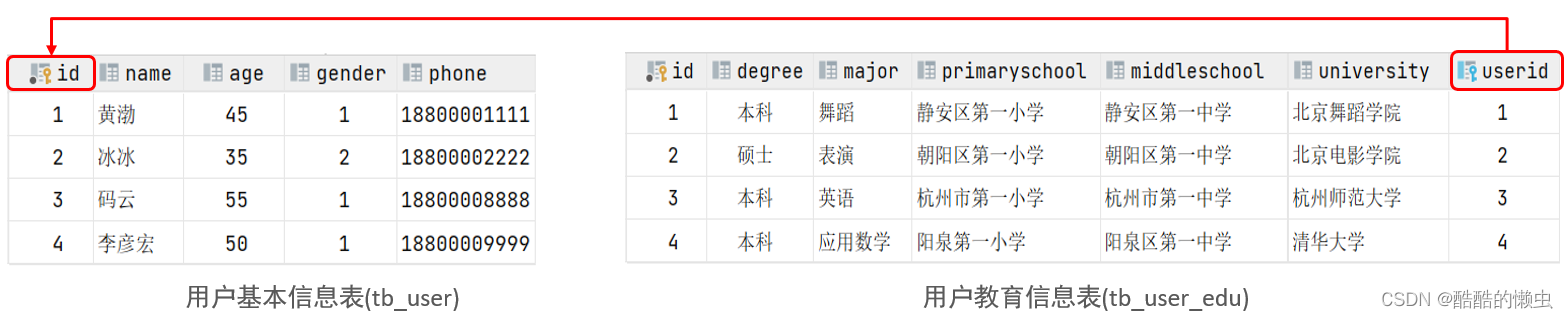

- 案例: 用户 与 用户详情的关系
- 关系: 一对一关系,多用于单表拆分,将一张表的基础字段放在一张表中,其他详情字段放在另一张表中,以提升操作效率
- 实现: 在任意一方加入外键,关联另外一方的主键,并且设置外键为唯一的(
unique
)

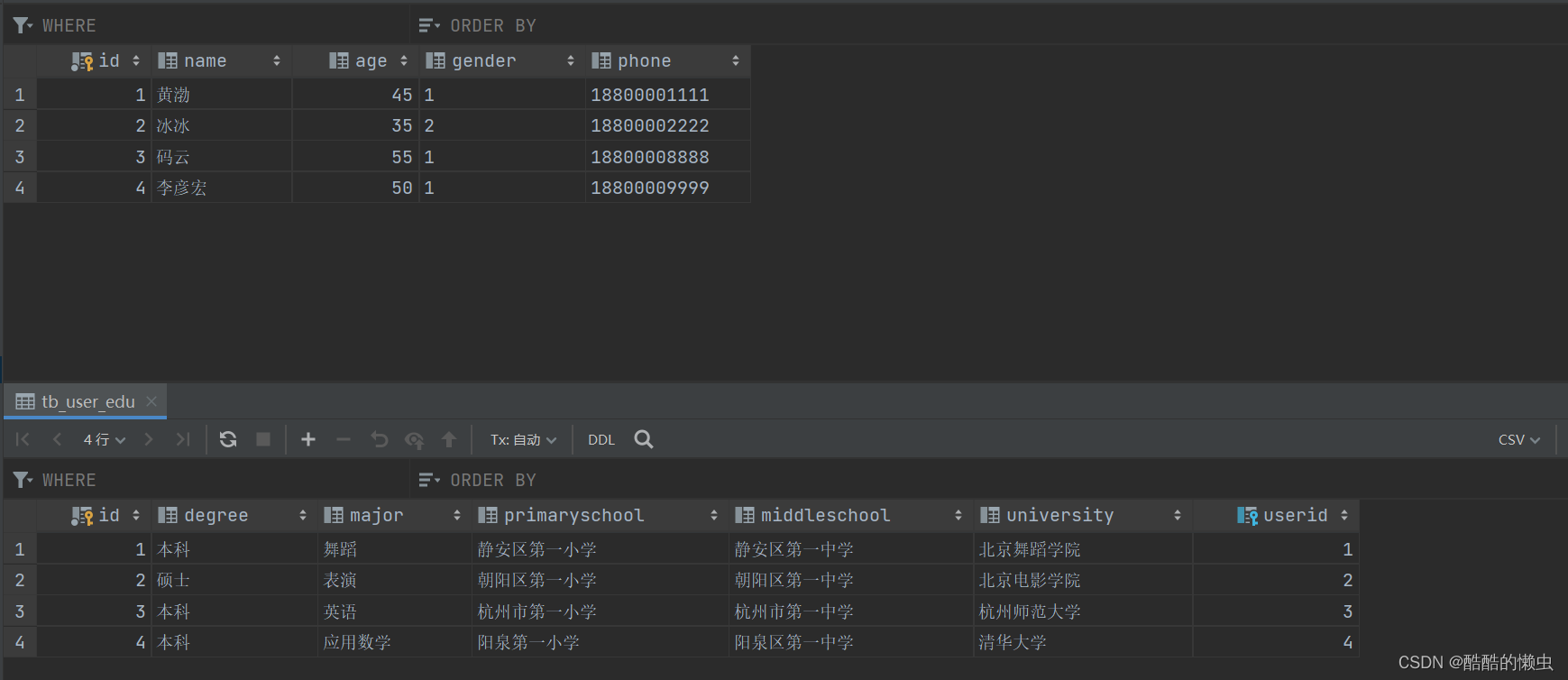

对应的SQL脚本:
createtable tb_user(
id intauto_incrementprimarykeycomment'主键ID',
name varchar(10)comment'姓名',
age intcomment'年龄',
gender char(1)comment'1: 男 , 2: 女',
phone char(11)comment'手机号')comment'用户基本信息表';createtable tb_user_edu(
id intauto_incrementprimarykeycomment'主键ID',
degree varchar(20)comment'学历',
major varchar(50)comment'专业',
primaryschool varchar(50)comment'小学',
middleschool varchar(50)comment'中学',
university varchar(50)comment'大学',
userid intuniquecomment'用户ID',constraint fk_userid foreignkey(userid)references tb_user(id))comment'用户教育信息表';insertinto tb_user(id, name, age, gender, phone)values(null,'黄渤',45,'1','18800001111'),(null,'冰冰',35,'2','18800002222'),(null,'码云',55,'1','18800008888'),(null,'李彦宏',50,'1','18800009999');insertinto tb_user_edu(id, degree, major, primaryschool, middleschool, university, userid)values(null,'本科','舞蹈','静安区第一小学','静安区第一中学','北京舞蹈学院',1),(null,'硕士','表演','朝阳区第一小学','朝阳区第一中学','北京电影学院',2),(null,'本科','英语','杭州市第一小学','杭州市第一中学','杭州师范大学',3),(null,'本科','应用数学','阳泉第一小学','阳泉区第一中学','清华大学',4);
一对一经常用作单表的拆分,当然也可以合并成一张表!
🚀🚀🚀 多表关系 快速食用:
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------->
# 1、一对多
在多的一方建立外键,指向一的一方的主键。
# 2、多对多
建立第三张中间表,中间表至少包含两个外键,分别关联两方主键。
# 3、一对一
在任意一方加入外键,关联另外一方的主键,并且设置外键为唯一的(unique)。
5.2 多表查询概述
5.2.1 数据准备
1). 删除之前
emp
,
dept
表的测试数据
2). 执行如下脚本,创建
emp
表与
dept
表并插入测试数据
-- 创建dept表,并插入数据createtable dept(
id intauto_incrementcomment'ID'primarykey,
name varchar(50)notnullcomment'部门名称')comment'部门表';INSERTINTO dept (id, name)VALUES(1,'研发部'),(2,'市场部'),(3,'财务部'),(4,'销售部'),(5,'总经办'),(6,'人事部');-- 创建emp表,并插入数据createtable emp(
id intauto_incrementcomment'ID'primarykey,
name varchar(50)notnullcomment'姓名',
age intcomment'年龄',
job varchar(20)comment'职位',
salary intcomment'薪资',
entrydate datecomment'入职时间',
managerid intcomment'直属领导ID',
dept_id intcomment'部门ID')comment'员工表';-- 添加外键altertable emp addconstraint fk_emp_dept_id foreignkey(dept_id)references dept(id);INSERTINTO emp (id, name, age, job,salary, entrydate, managerid, dept_id)VALUES(1,'金庸',66,'总裁',20000,'2010-01-01',null,5),(2,'张无忌',20,'项目经理',12500,'2015-12-05',1,1),(3,'杨逍',33,'开发',8400,'2010-11-03',2,1),(4,'韦一笑',48,'开发',11000,'2012-02-05',2,1),(5,'常遇春',43,'开发',10500,'2014-09-07',3,1),(6,'小昭',19,'程序员鼓励师',6600,'2014-10-12',2,1),(7,'灭绝',60,'财务总监',8500,'2012-09-12',1,3),(8,'周芷若',19,'会计',48000,'2016-06-02',7,3),(9,'丁敏君',23,'出纳',5250,'2019-05-13',7,3),(10,'赵敏',20,'市场部总监',12500,'2014-10-12',1,2),(11,'鹿杖客',56,'职员',3750,'2016-10-03',10,2),(12,'鹤笔翁',19,'职员',3750,'2017-05-09',10,2),(13,'方东白',19,'职员',5500,'2019-02-12',10,2),(14,'张三丰',88,'销售总监',14000,'2014-10-12',1,4),(15,'俞莲舟',38,'销售',4600,'2014-10-12',14,4),(16,'宋远桥',40,'销售',4600,'2014-10-12',14,4),(17,'陈友谅',42,null,2000,'2021-10-12',1,null);
dept
表共6条记录,
emp
表共17条记录。
5.2.2 概述
多表查询就是指从多张表中查询数据。
- 原来查询单表数据,执行的SQL形式为:
select * from emp
; - 那么我们要执行多表查询,就只需要使用逗号分隔多张表即可,如:

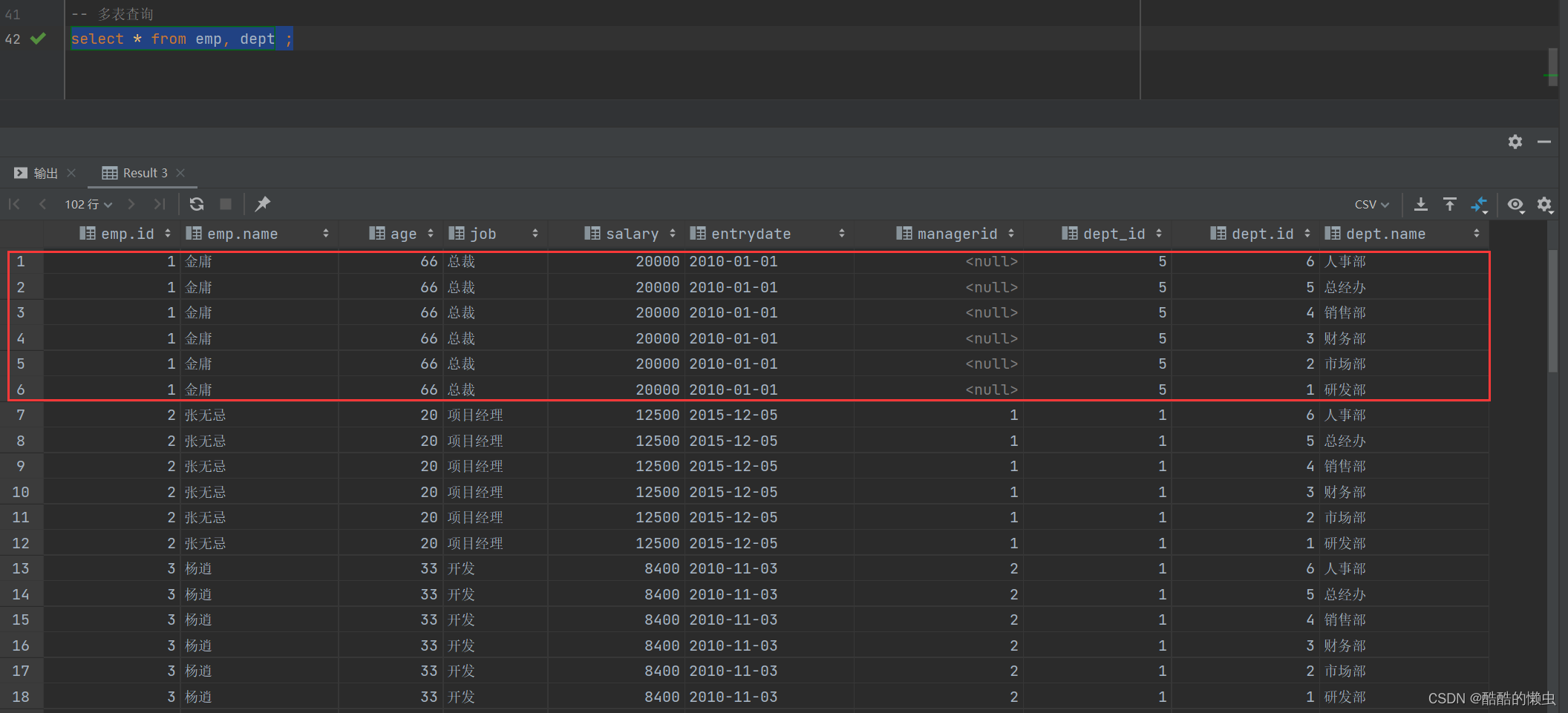

select * from emp, dept ;

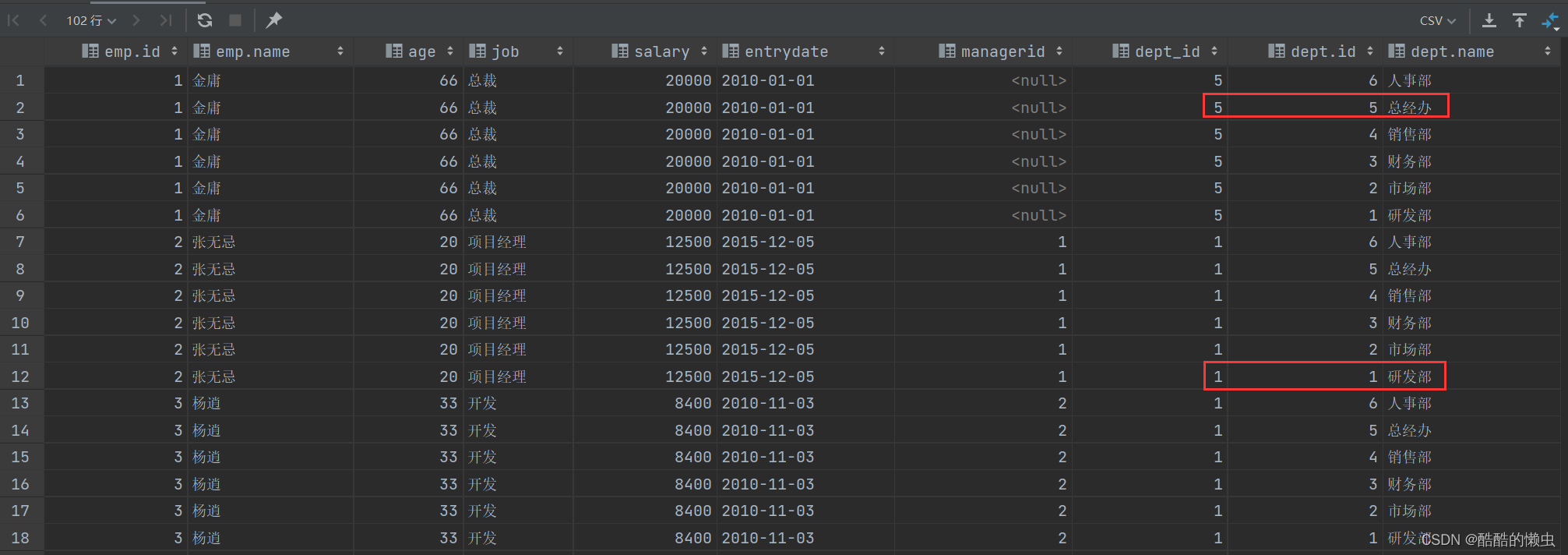

具体的执行结果如下:
- 此时,我们看到查询结果中包含了大量的结果集,总共102条记录,而这其实就是员工表
emp
所有的记录(17) 与 部门表dept

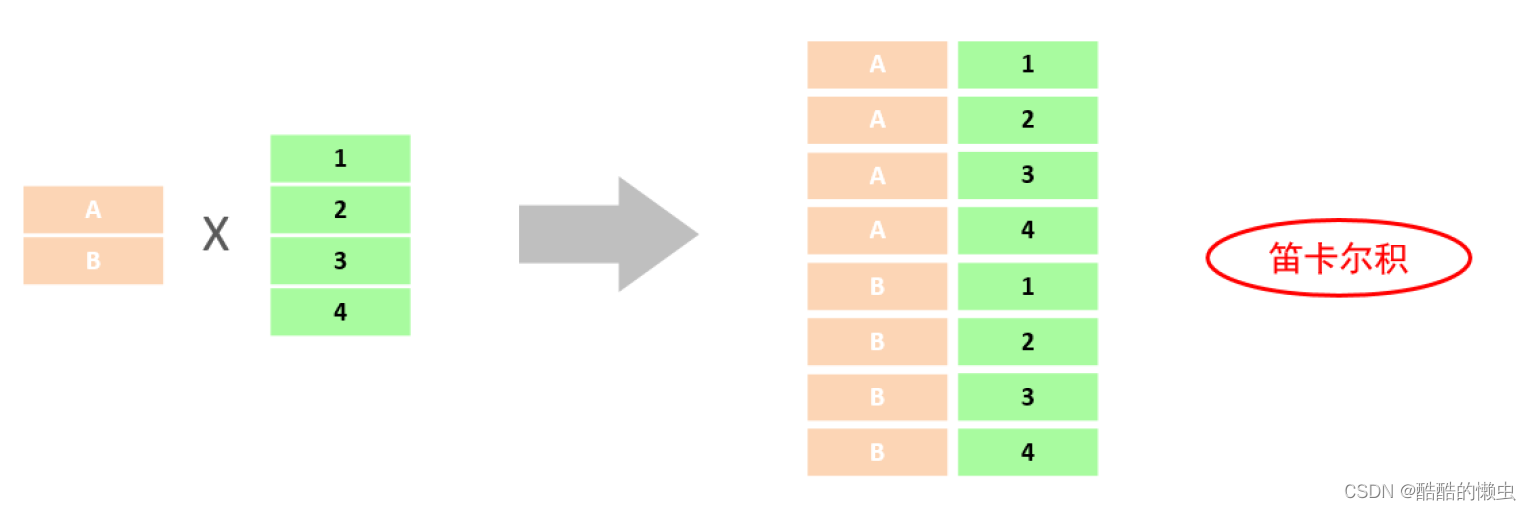

所有记录(6) 的所有组合情况,这种现象称之为 笛卡尔积。接下来,就来简单介绍下笛卡尔积。 - 笛卡尔积: 笛卡尔乘积是指在数学中,两个集合A集合 和 B集合的所有组合情况。(在多表查询时,需要消除无效的笛卡尔积)

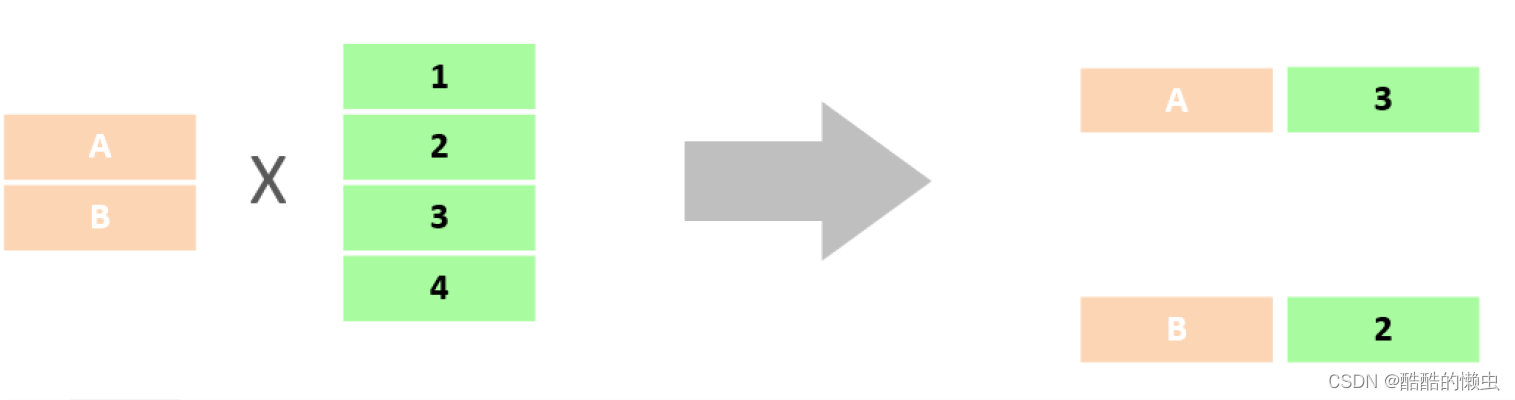

- 而在多表查询中,我们是需要消除无效的笛卡尔积的,只保留两张表关联部分的数据。
在SQL语句中,如何来去除无效的笛卡尔积呢? 我们可以给多表查询加上连接查询的条件即可。

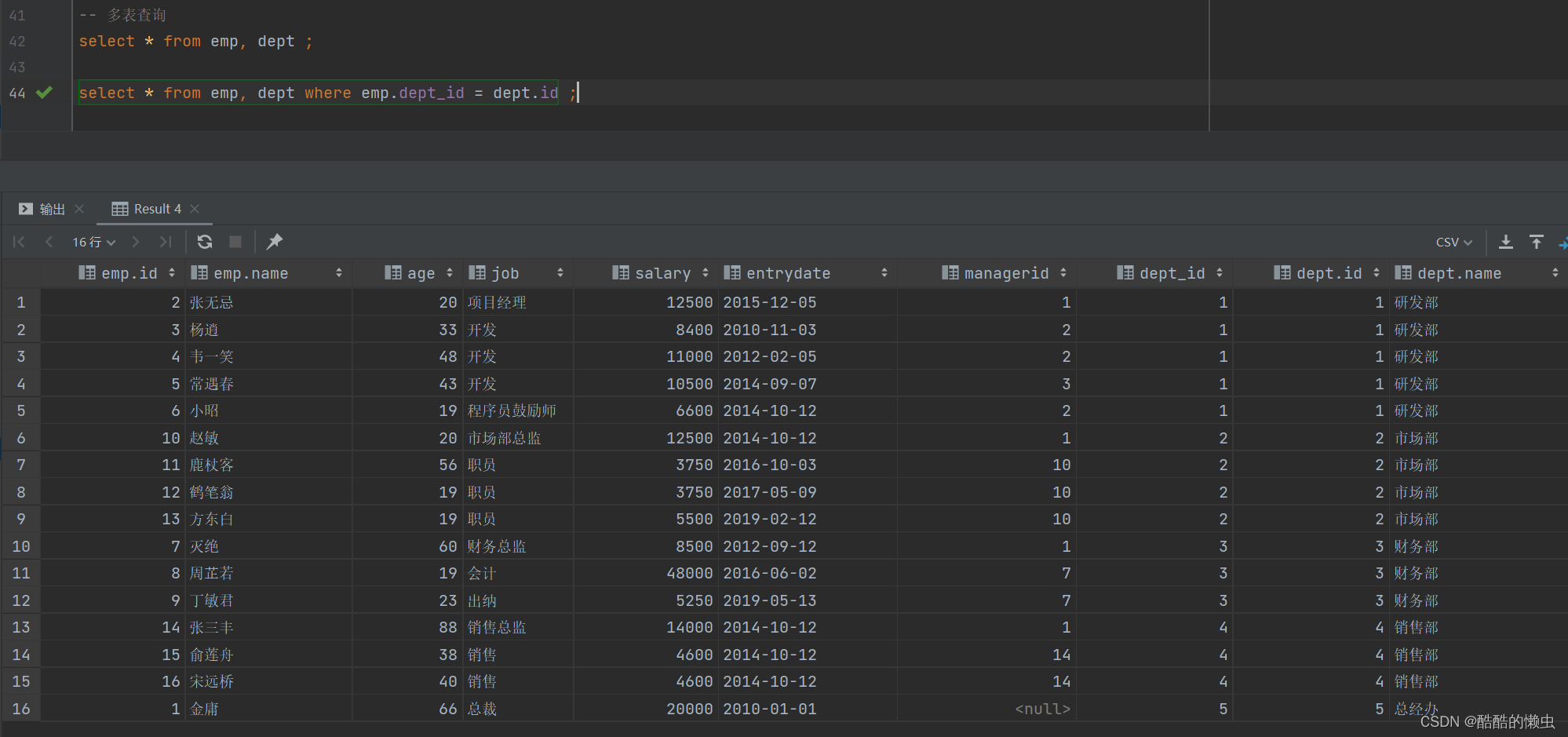

select*from emp, dept where emp.dept_id = dept.id ;
而由于
id
为17的员工,没有
dept_id
字段值,所以在多表查询时,根据连接查询的条件并没有查询到。
5.2.3 分类
⭐️ 连接查询
- 内连接:相当于查询
A
、B
交集部分数据 - 外连接: - 左外连接:查询左表所有数据,以及两张表交集部分数据;- 右外连接:查询右表所有数据,以及两张表交集部分数据。
- 自连接:当前表与自身的连接查询,自连接必须使用表别名。
⭐️ 子查询
5.3 内连接
内连接查询的是两张表交集部分的数据。(也就是 绿色 部分的数据).
内连接的语法分为两种: 隐式内连接、显式内连接。先来学习一下具体的语法结构。
⭐️ 1). 隐式内连接
select 字段列表 from 表1, 表2where 条件 ...;
⭐️ 2). 显式内连接
select 字段列表 from 表1[inner]join 表2on 连接条件 ...;
案例:
A. 查询每一个员工的姓名 , 及关联的部门的名称 (隐式内连接实现)
- 表结构:
emp
,dept
- 连接条件:
emp.dept_id = dept.id

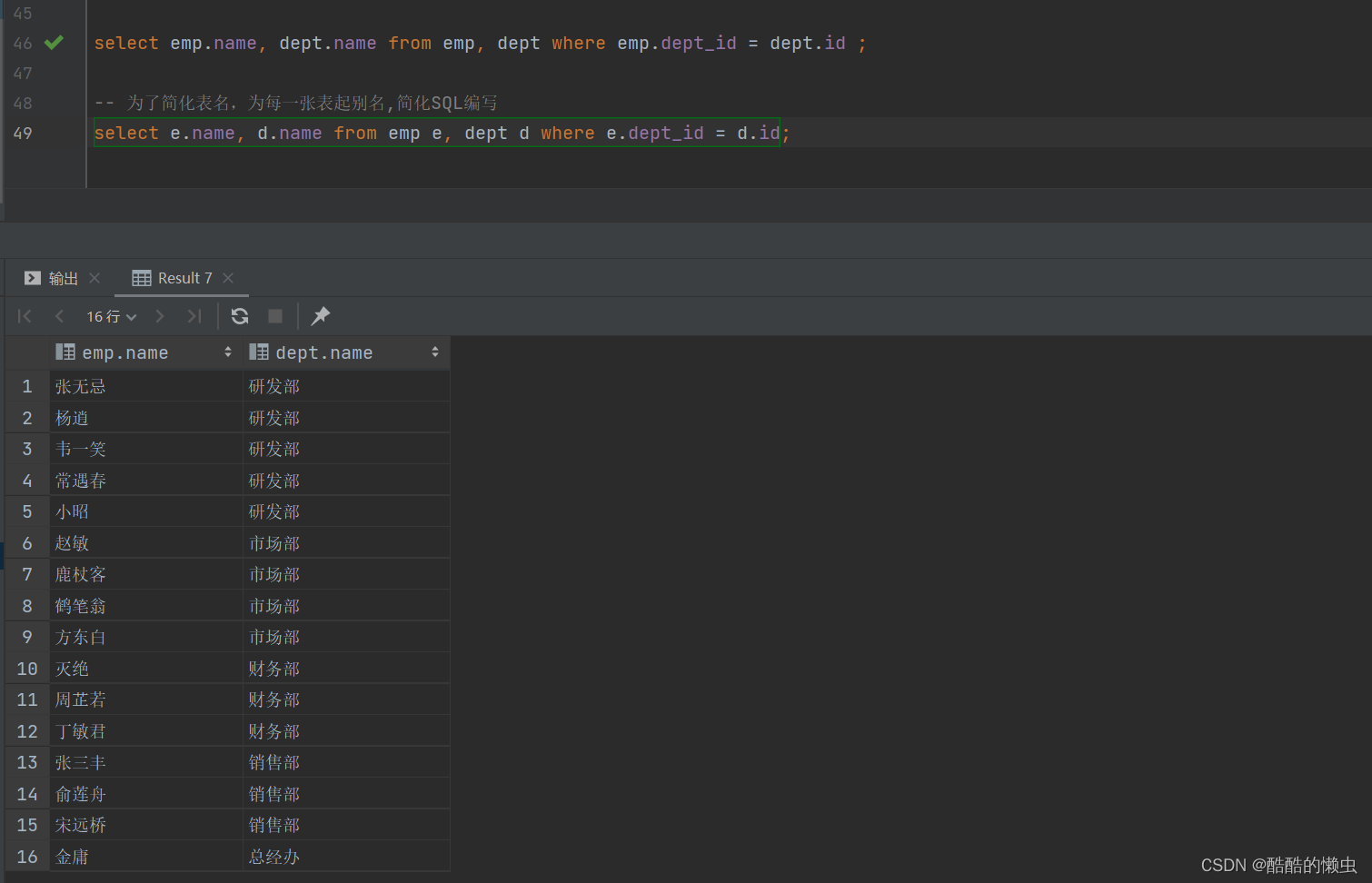

select emp.name, dept.name from emp, dept where emp.dept_id = dept.id ;-- 为每一张表起别名,简化SQL编写select e.name, d.name from emp e, dept d where e.dept_id = d.id;

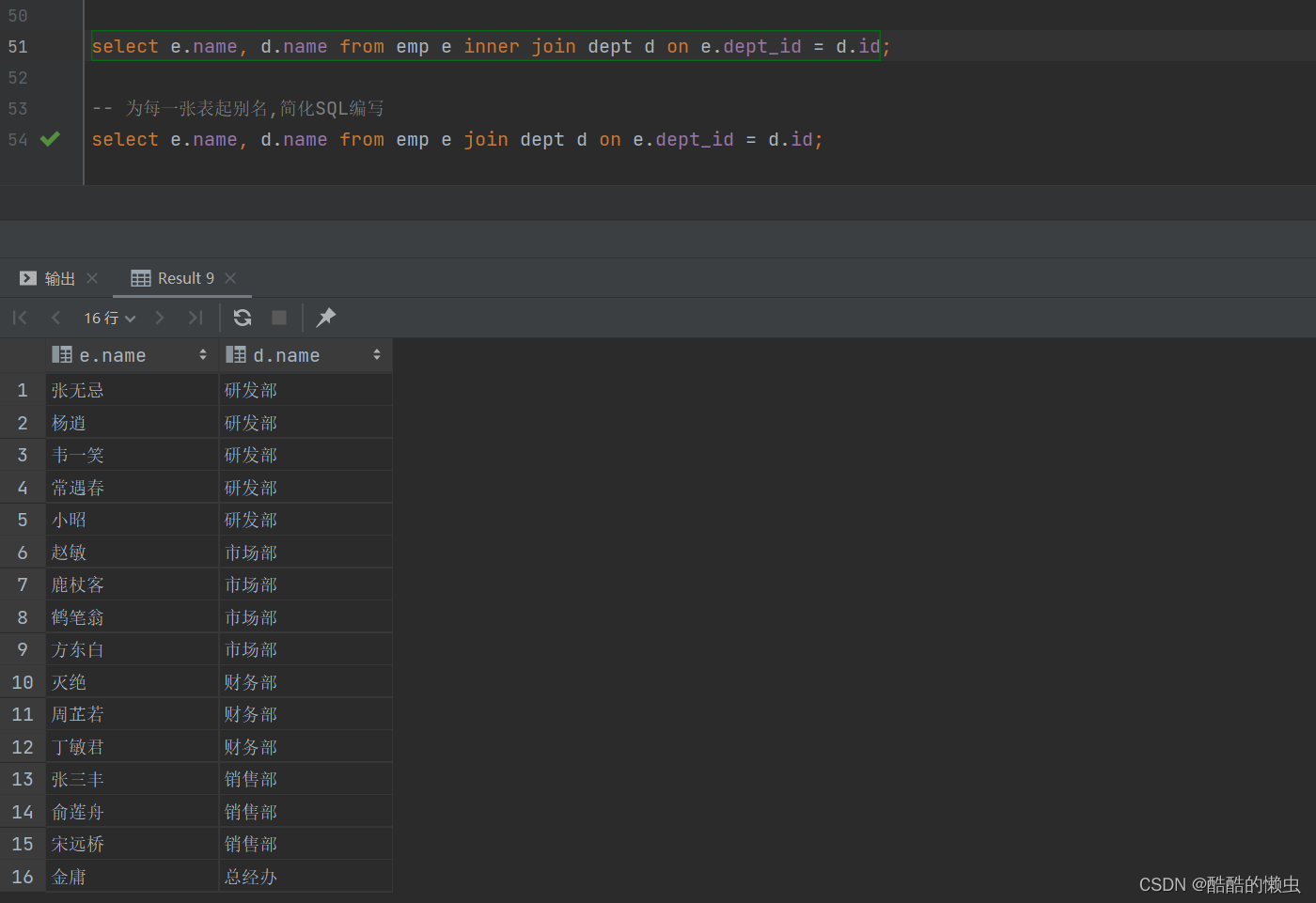

B. 查询每一个员工的姓名 , 及关联的部门的名称 (显式内连接实现) — INNER JOIN … ON …
- 表结构:
emp
,dept
- 连接条件:
emp.dept_id = dept.id
select e.name, d.name from emp e innerjoin dept d on e.dept_id = d.id;-- 为每一张表起别名,简化SQL编写select e.name, d.name from emp e join dept d on e.dept_id = d.id;
表的别名:
- ①.
tablea as 别名1 , tableb as 别名2 ;
- ②.
tablea 别名1 , tableb 别名2 ;
注意事项:
一旦为表起了别名,就不能再使用表名来指定对应的字段了,此时只能够使用别名来指定字段。
5.4 外连接
外连接分为两种,分别是:左外连接 和 右外连接。具体的语法结构为:
⭐️ 1). 左外连接
select 字段列表 from 表1left[outer]join 表2on 条件 ...;
- 左外连接相当于查询 表1(左表)的所有数据,当然也包含表1和表2交集部分的数据。
⭐️ 2). 右外连接
select 字段列表 from 表1right[outer]join 表2on 条件 ...;
- 右外连接相当于查询 表2(右表)的所有数据,当然也包含表1和表2交集部分的数据。
案例:
A. 查询
emp
表的所有数据, 和对应的部门信息
由于需求中提到,要查询
emp
的所有数据,所以是不能内连接查询的,需要考虑使用外连接查询。
- 表结构:
emp
,dept
- 连接条件:
emp.dept_id = dept.id
select e.*, d.name from emp e leftouterjoin dept d on e.dept_id = d.id;select e.*, d.name from emp e leftjoin dept d on e.dept_id = d.id;

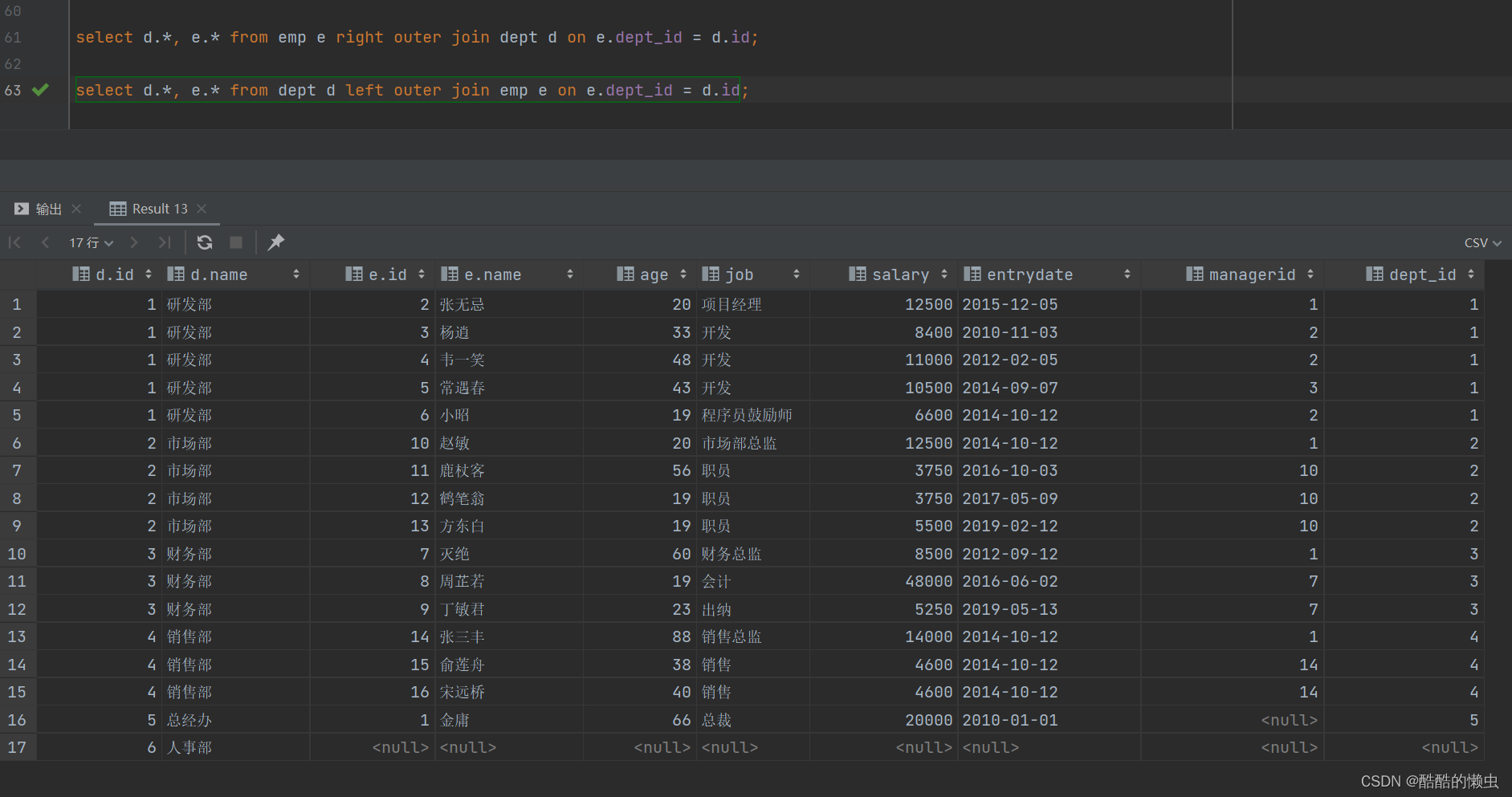

B. 查询
dept
表的所有数据, 和对应的 员工信息(右外连接)
由于需求中提到,要查询dept表的所有数据,所以是不能内连接查询的,需要考虑使用外连接查询。
- 表结构:
emp
,dept
- 连接条件:
emp.dept_id = dept.id
select d.*, e.*from emp e rightouterjoin dept d on e.dept_id = d.id;select d.*, e.*from dept d leftouterjoin emp e on e.dept_id = d.id;
注意事项:
- 左外连接和右外连接是可以相互替换的,只需要调整在连接查询时SQL中,表结构的先后顺序就可以了。而我们在日常开发使用时,更偏向于 左外连接 。
5.5 自连接
5.5.1 自连接查询
自连接查询,顾名思义,就是自己连接自己,也就是把一张表连接查询多次。我们先来学习一下自连接的查询语法:
select 字段列表 from 表A 别名A join 表A 别名B on 条件 ...;
- 而对于自连接查询,可以是内连接查询,也可以是外连接查询。
案例:
A. 查询员工 及其 所属领导的名字
- 表结构:
emp

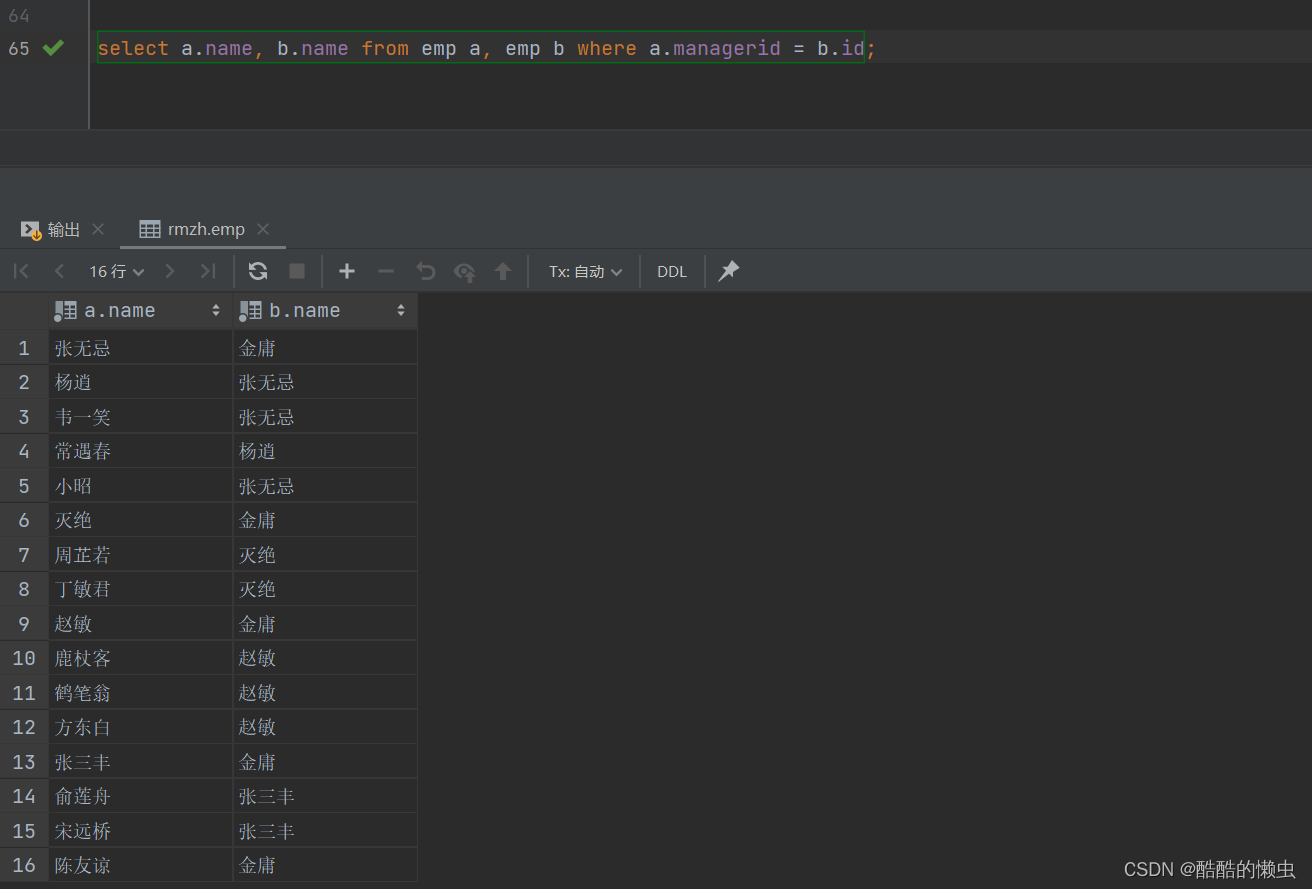

select a.name, b.name from emp a, emp b where a.managerid = b.id;
B. 查询所有员工
emp
及其领导的名字
emp
, 如果员工没有领导, 也需要查询出来
- 表结构:
emp a , emp b
select a.name '员工', b.name '领导'from emp a leftjoin emp b on a.managerid =b.id;
注意事项:
- 在自连接查询中,必须要为表起别名,要不然我们不清楚所指定的条件、返回的字段,到底是哪一张表的字段。
5.5.2 联合查询
对于
union
查询,就是把多次查询的结果合并起来,形成一个新的查询结果集。
select 字段列表 from 表A ...union[all]select 字段列表 from 表B ....;
- 对于联合查询的多张表的 列数 必须保持一致,字段类型 也需要保持一致。
union all
会将全部的数据直接合并在一起,union
会对合并之后的数据去重。
案例:
A. 将薪资低于 5000 的员工 , 和 年龄大于 50 岁的员工全部查询出来.
- 当前对于这个需求,我们可以直接使用多条件查询,使用逻辑运算符
or
连接即可。 那这里呢,我们 也可以通过union/union all
来联合查询.

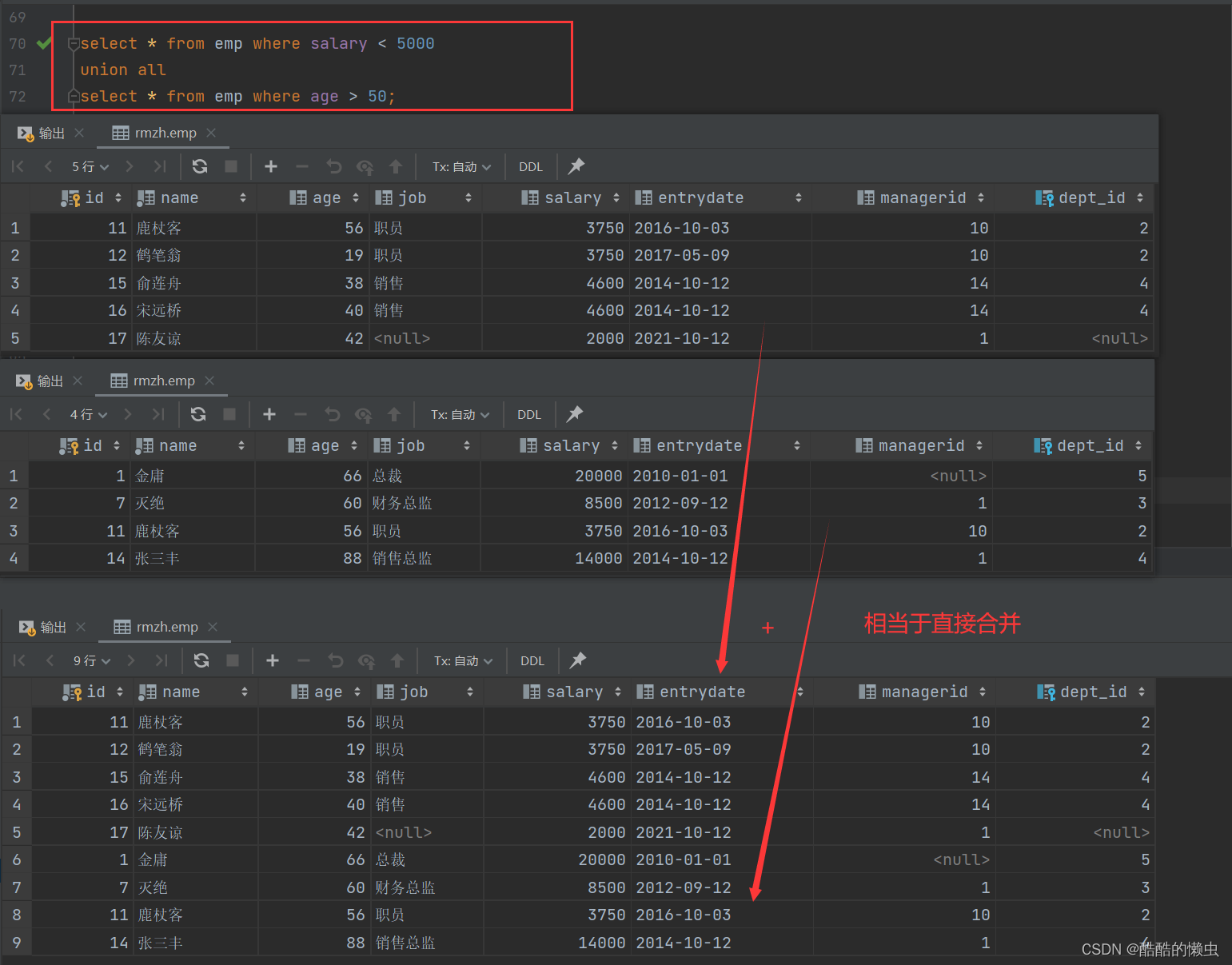

select*from emp where salary <5000unionallselect*from emp where age >50;
union all
查询出来的结果,仅仅进行简单的合并,并未去重。
select*from emp where salary <5000unionselect*from emp where age >50;
union
联合查询,会对查询出来的结果进行去重处理。
注意:
- 如果多条查询语句查询出来的结果,字段数量 不一致,在进行
union/union all
联合查询时,将会报错。
5.6 子查询
5.6.1 概述
⭐️ 1). 概念
SQL语句中 嵌套
SELECT
语句,称为 嵌套查询,又称 子查询。
select*from t1 where column1 =(select column1 from t2 );
- 子查询外部的语句可以是
insert / update / delete / select
的任何一个。
⭐️ 2). 分类
根据子查询结果不同,分为:
- A. 标量子查询(子查询结果为单个值,只有一行一列)
- B. 列子查询 (子查询结果为一列)
- C. 行子查询 (子查询结果为一行)
- D. 表子查询 (子查询结果为多行多列)
根据子查询位置,分为:
- A.
where
之后 - B.
from
之后 - C.
select
之后
5.6.2 标量子查询
子查询返回的结果是单个值(数字、字符串、日期等),最简单的形式,这种子查询称为 标量子查询。
- 常用的操作符:
=``````<>``````>``````>=``````<``````<=
案例:

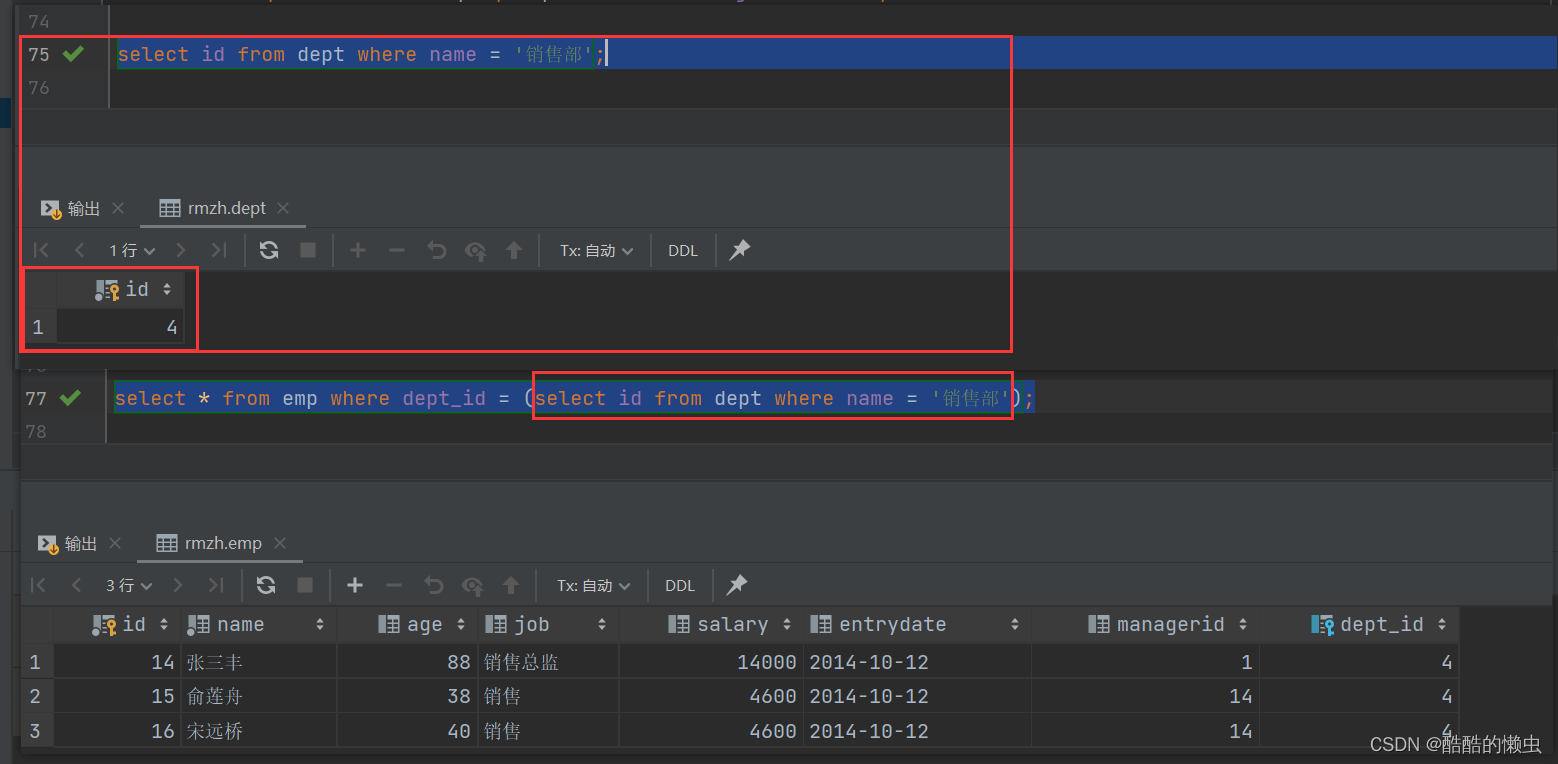

A. 查询 “销售部” 的所有员工信息
- 完成这个需求时,我们可以将需求分解为两步:
- ①. 查询 “销售部” 部门ID
select id from dept where name ='销售部';
- ②. 根据 “销售部” 部门ID, 查询员工信息
select*from emp where dept_id =(select id from dept where name ='销售部');
B. 查询在 “方东白” 入职之后的员工信息
- 完成这个需求时,我们可以将需求分解为两步:
- ①. 查询 方东白 的入职日期
select entrydate from emp where name ='方东白';
- ②. 查询指定入职日期之后入职的员工信息
select*from emp where entrydate >(select entrydate from emp where name ='方东白');
5.6.3 列子查询
子查询返回的结果是一列(可以是多行),这种子查询称为 列子查询。
- 常用的操作符:
in
、not in
、any
、some
、all
案例:
A. 查询 “销售部” 和 “市场部” 的所有员工信息
- 分解为以下两步:
- ①. 查询 “销售部” 和 “市场部” 的部门ID

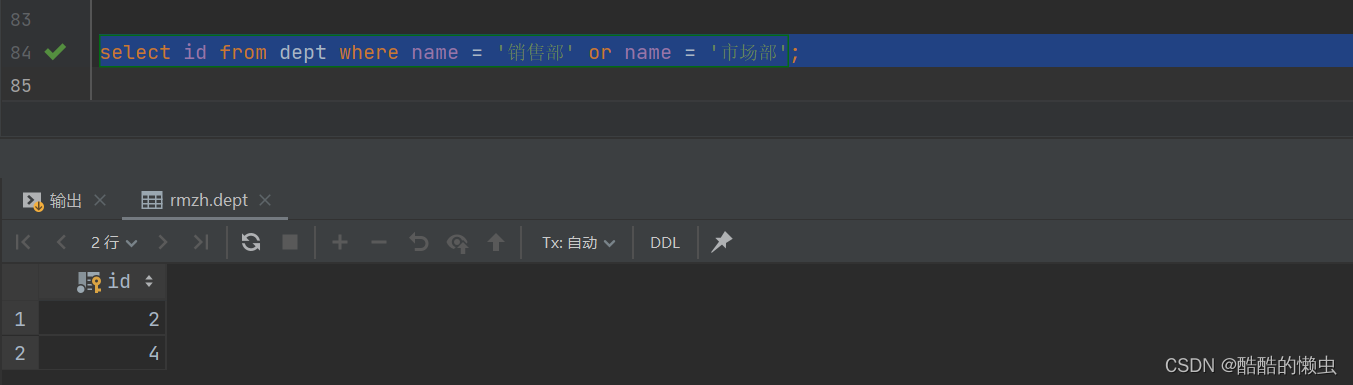

select id from dept where name ='销售部'or name ='市场部';
- ②. 根据部门ID, 查询员工信息
select*from emp where dept_id in(select id from dept where name ='销售部'or name ='市场部');
B. 查询比 财务部 所有人工资都高的员工信息
- 分解为以下两步:
- ①. 查询所有 财务部 人员工资

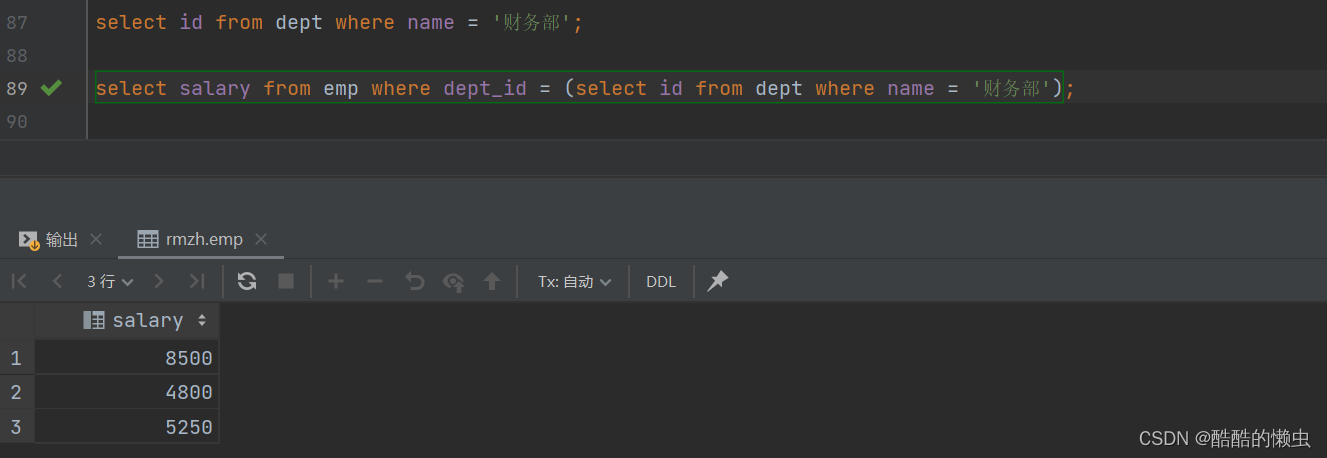

select id from dept where name ='财务部';select salary from emp where dept_id =(select id from dept where name ='财务部');
- ②. 比 财务部 所有人工资都高的员工信息

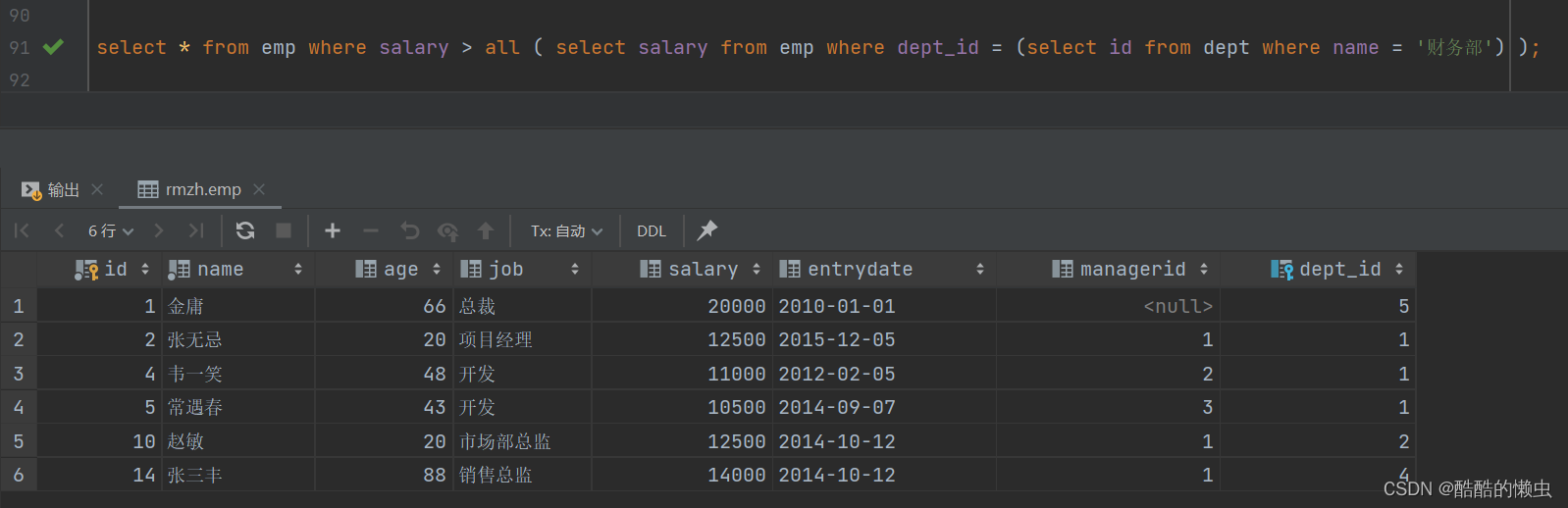

select*from emp where salary >all(select salary from emp where dept_id =(select id from dept where name ='财务部'));

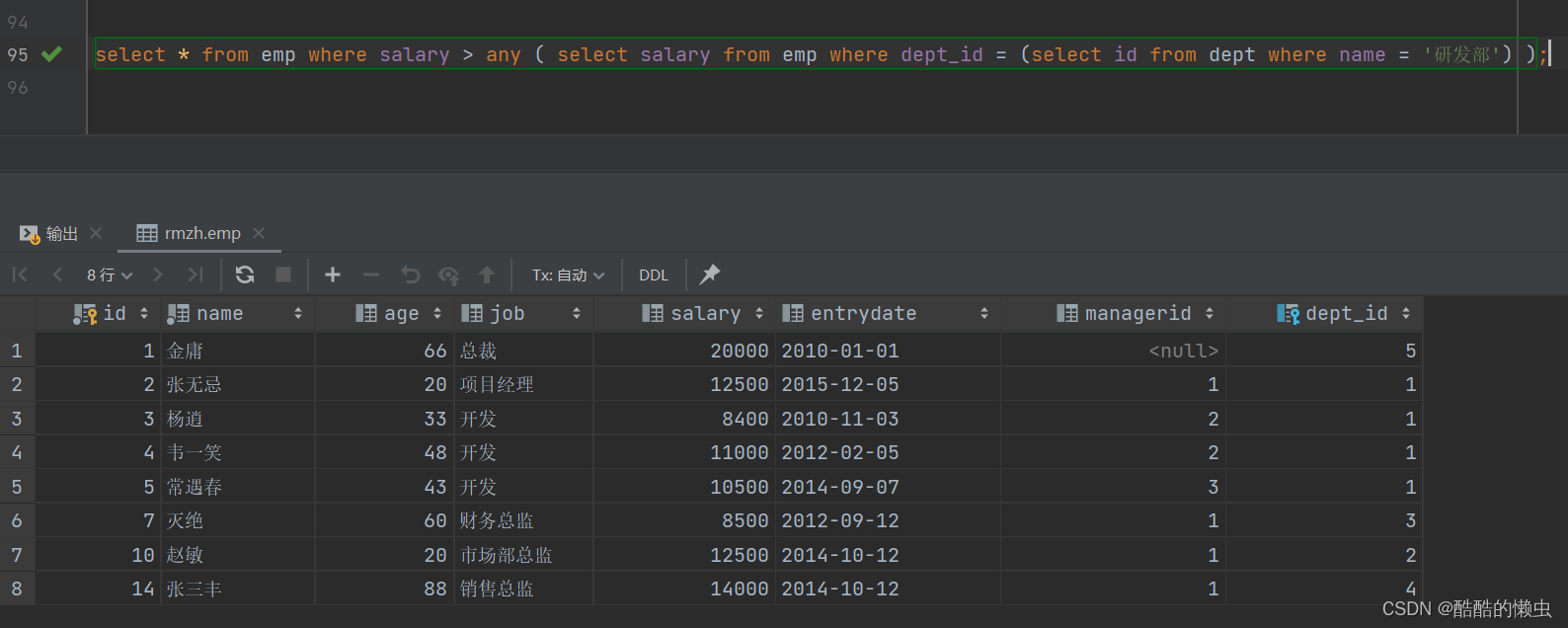

C. 查询比研发部其中任意一人工资高的员工信息
- 分解为以下两步:
- ①. 查询研发部所有人工资

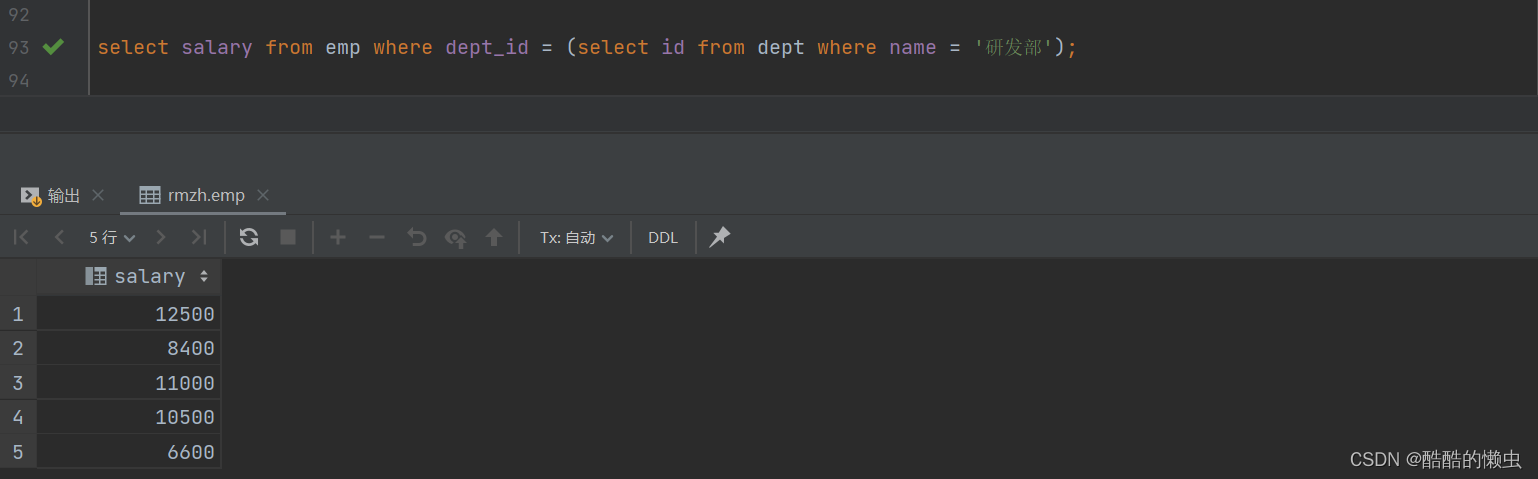

select salary from emp where dept_id =(select id from dept where name ='研发部');
- ②. 比研发部其中任意一人工资高的员工信息
select*from emp where salary >any(select salary from emp where dept_id =(select id from dept where name ='研发部'));
5.6.4 行子查询
子查询返回的结果是一行(可以是多列),这种子查询称为行子查询。
- 常用的操作符:
=
、<>
、in
、not in
案例:

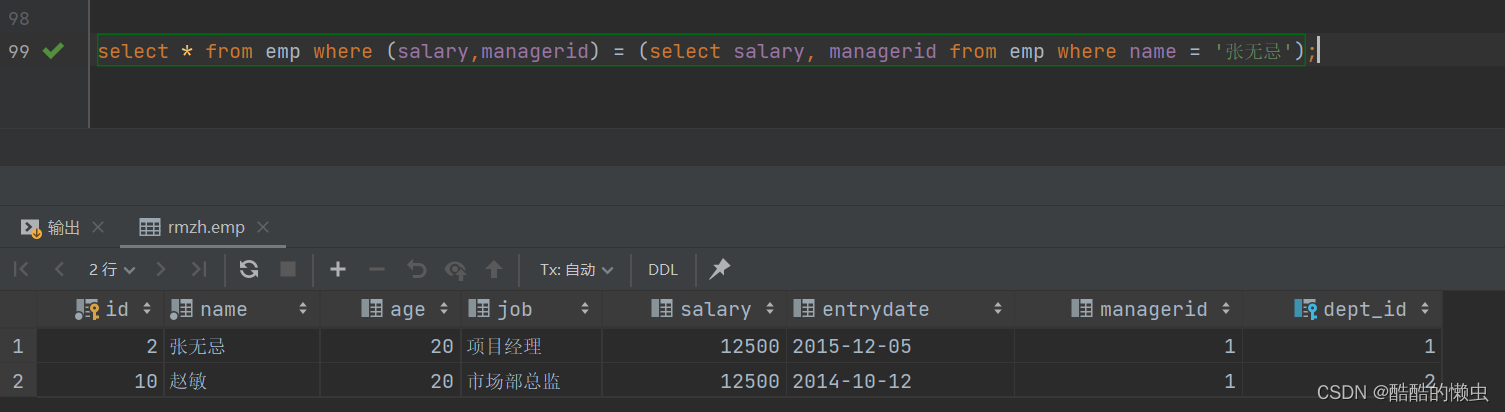

A. 查询与 “张无忌” 的薪资及直属领导相同的员工信息 ;
- 这个需求同样可以拆解为两步进行:
- ①. 查询 “张无忌” 的薪资及直属领导

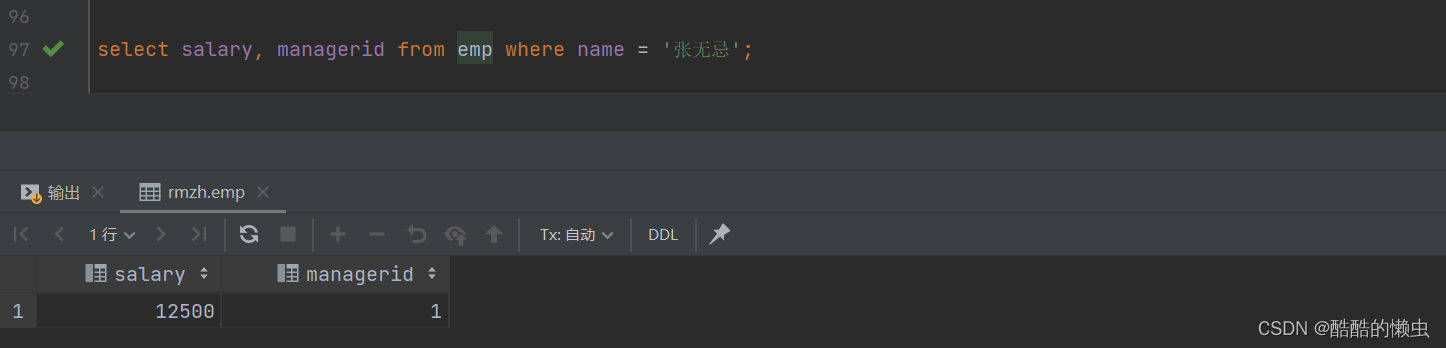

select salary, managerid from emp where name ='张无忌';
- ②. 查询与 “张无忌” 的薪资及直属领导相同的员工信息 ;
select*from emp where(salary,managerid)=(select salary, managerid from emp where name ='张无忌');
5.6.5 表子查询
子查询返回的结果是 多行多列,这种子查询称为 表子查询。
- 常用的操作符:
in
- 经常出现在
from
之后,把表子查询返回的结果作为临时表,再和其他表进行联查操作。
案例:

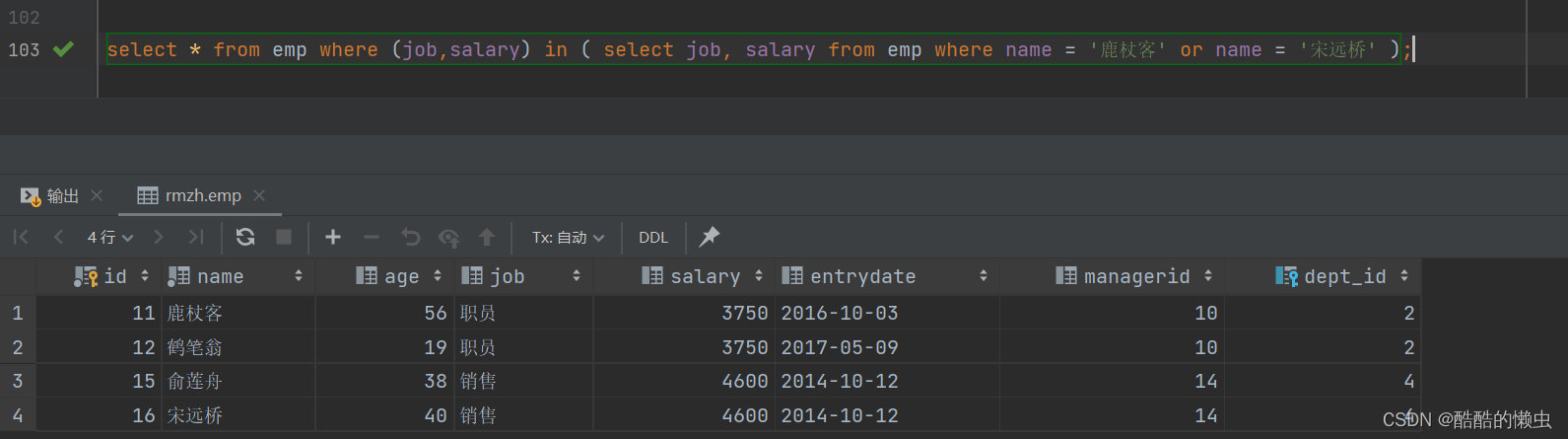

A. 查询与 “鹿杖客” , “宋远桥” 的职位和薪资相同的员工信息
- 分解为两步执行:
- ①. 查询 “鹿杖客” , “宋远桥” 的职位和薪资

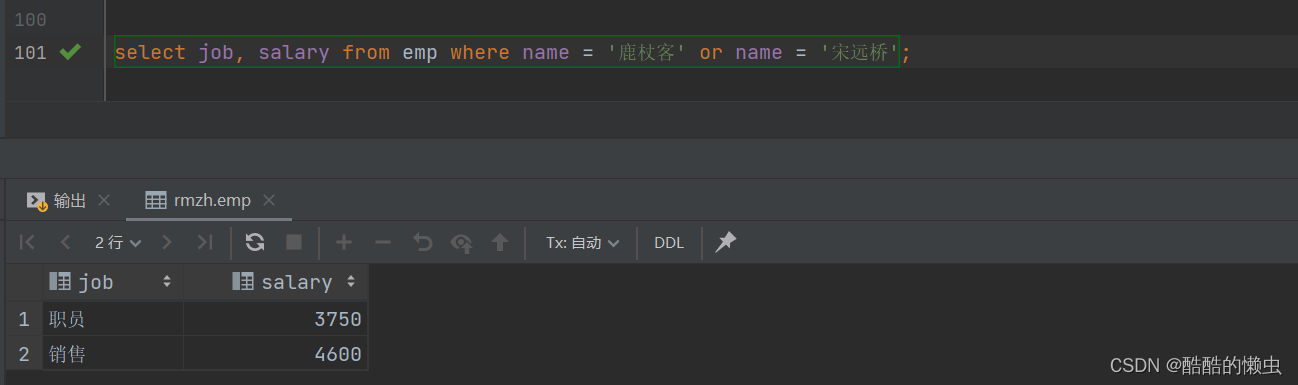

select job, salary from emp where name ='鹿杖客'or name ='宋远桥';
- ②. 查询与 “鹿杖客” , “宋远桥” 的职位和薪资相同的员工信息
select*from emp where(job,salary)in(select job, salary from emp where name ='鹿杖客'or name ='宋远桥');

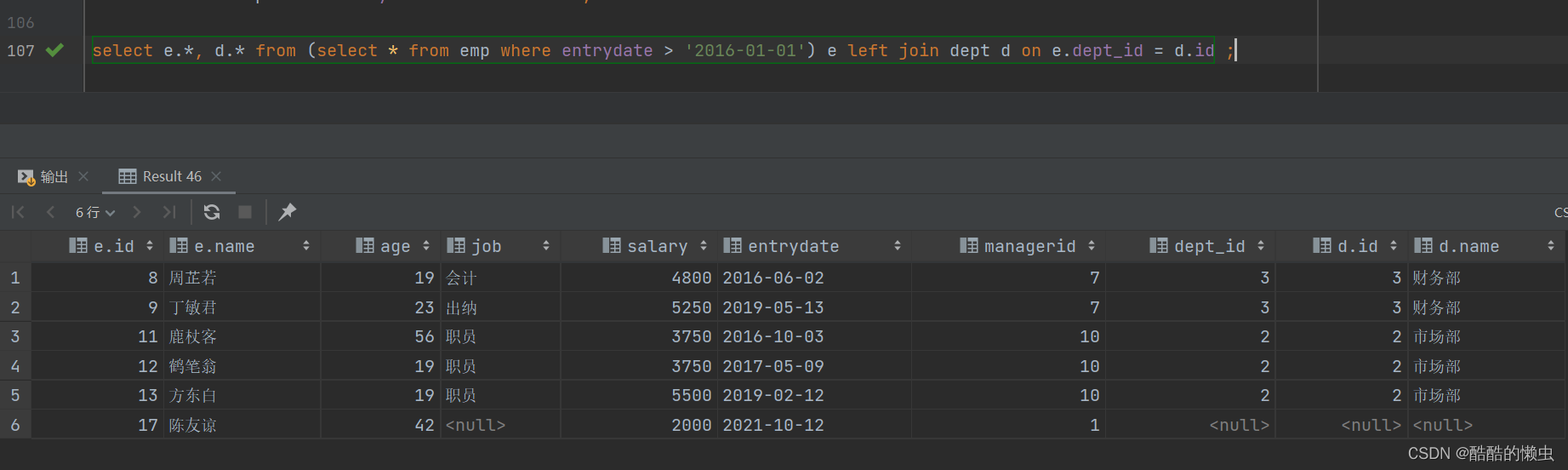

B. 查询入职日期是 “2016-01-01” 之后的员工信息 , 及其部门信息
- 分解为两步执行:
- ①. 入职日期是 “2016-01-01” 之后的员工信息

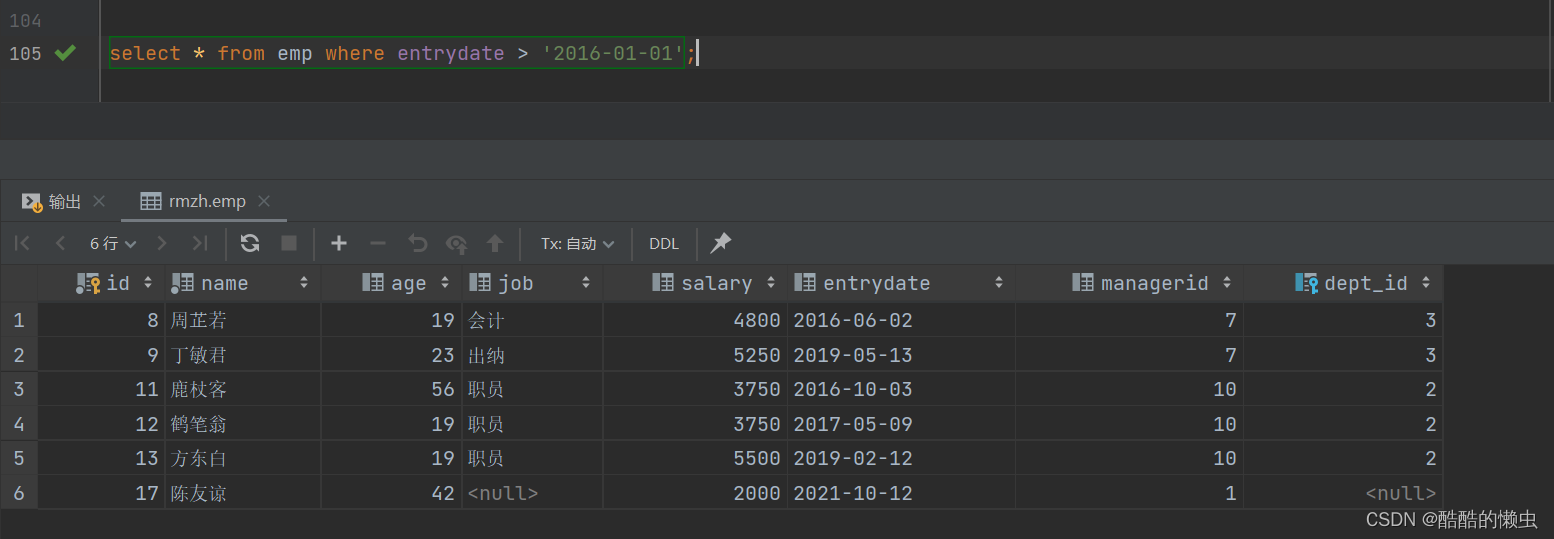

select*from emp where entrydate >'2016-01-01';
- ②. 查询这部分员工, 对应的部门信息;
select e.*, d.*from(select*from emp where entrydate >'2016-01-01') e leftjoin dept d on e.dept_id = d.id ;
🚀🚀🚀 多表查询 快速食用:
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------->
# 1、内连接## 1.1). 隐式内连接select 字段列表 from 表1, 表2where 条件 ...;## 1.2). 显式内连接select 字段列表 from 表1[inner]join 表2on 连接条件 ...;# 2、外连接## 2.1). 左外连接select 字段列表 from 表1left[outer]join 表2on 条件 ...;## 2.2). 右外连接select 字段列表 from 表1right[outer]join 表2on 条件 ...;# 3、自连接select 字段列表 from 表A 别名A join 表A 别名B on 条件 ...;# 4、联合查询select 字段列表 from 表A ...union[all]# 注意是否需要去重select 字段列表 from 表B ....;# 5、子查询/嵌套查询select*from t1 where column1 =(select column1 from t2 );## 5.1). 标量子查询
常用的操作符:=<>>>=<<=## 5.2). 列子查询
常用的操作符:in 、notin 、 any 、some 、 all## 5.3). 行子查询
常用的操作符:= 、<> 、in 、notin## 5.4). 表子查询
常用的操作符:in
注:仅供学习参考!如有不足,欢迎指正!!!
