sonar8.9版本 win10安装使用手册

1. 安装包准备：

注意：不同版本之间是有兼容性问题的，可参考官方推荐版本

下载地址

sonarqube 版本：8.9.9.56886 说明：snoar服务器

sonar-pdfplugin 版本：3.x 说明：测试报告生成pdf插件

sonarscanner 版本：4.7.0.2747-windows 说明：扫描器

sonarqube-community-branch-plugin-1.8.0.jar 说明：指定扫描分支，不安装，默认扫描master分支

java环境：jdk 11

2. 环境准备

配置系统环境变量

2.1 配置sonar-scanner

变量名：SONAR_SCANNER_HOME
变量值（安装包所在位置）：D:\work\soft\sonarqube\sonar-scanner-4.7.0.2747-windows
path新增：%SONAR_SCANNER_HOME%\bin

验证：

$ sonar-scanner -v
INFO: Scanner configuration file: D:\work\soft\sonarqube\sonar-scanner-
4.7.0.2747-windows\bin\..\conf\sonar-scanner.properties
INFO: SonarScanner 4.7.0.2747
INFO: Java 11.0.14.1 Eclipse Adoptium (64-bit)
INFO: Windows 10 10.0 amd64

2.2 配置sonarQube

1. 配置jdk11的环境

变量名：JAVA_HOME11
变量值（安装包所在位置）：D:\work\soft\jdk-11.0.16.1_windows-x64_bin\jdk-11.0.16.1
path新增：%JAVA_HOME11%\bin

1. 修改\conf\wrapper.conf配置文件# Path to JVM executable. By default it must be available in PATH.# Can be an absolute path, for example:wrapper.java.command=D:/tools/jdk-11.0.16.1_windows-x64_bin/jdk-11.0.16.1/bin/java.exe#wrapper.java.command=java## DO NOT EDIT THE FOLLOWING SECTIONS##********************************************************************# Wrapper Java#********************************************************************wrapper.java.additional.1=-Dsonar.wrapped=truewrapper.java.additional.2=-Djava.awt.headless=truewrapper.java.mainclass=org.tanukisoftware.wrapper.WrapperSimpleAppwrapper.java.classpath.1=../../lib/sonar-application-8.9.9.56886.jarwrapper.java.classpath.2=../../lib/jsw/wrapper-3.2.3.jarwrapper.java.classpath.3=../../lib/sonar-shutdowner-8.9.9.56886.jarwrapper.java.library.path.1=./libwrapper.app.parameter.1=org.sonar.application.Appwrapper.java.initmemory=8wrapper.java.maxmemory=32#********************************************************************# Wrapper Logs#********************************************************************wrapper.console.format=PMwrapper.console.loglevel=INFOwrapper.logfile.format=Mwrapper.logfile.loglevel=INFOwrapper.logfile.rollmode=DATEwrapper.logfile=../../logs/sonar.YYYYMMDD.log# Maximum size that the log file will be allowed to grow to before# the log is rolled. Size is specified in bytes. The default value# of 0, disables log rolling. May abbreviate with the 'k' (kb) or# 'm' (mb) suffix. For example: 10m = 10 megabytes.#wrapper.logfile.maxsize=0# Maximum number of rolled log files which will be allowed before old# files are deleted. The default value of 0 implies no limit.wrapper.logfile.maxfiles=7# Log Level for sys/event log output. (See docs for log levels)wrapper.syslog.loglevel=NONE#********************************************************************# Wrapper Windows Properties#********************************************************************# Title to use when running as a consolewrapper.console.title=SonarQube# Disallow start of multiple instances of an application at the same time on Windowswrapper.single_invocation=true#********************************************************************# Wrapper Windows NT/2000/XP Service Properties#********************************************************************# WARNING - Do not modify any of these properties when an application# using this configuration file has been installed as a service.# Please uninstall the service before modifying this section. The# service can then be reinstalled.# Name of the servicewrapper.ntservice.name=SonarQube# Display name of the servicewrapper.ntservice.displayname=SonarQube# Description of the servicewrapper.ntservice.description=SonarQube# Service dependencies. Add dependencies as needed starting from 1wrapper.ntservice.dependency.1=# Mode in which the service is installed. AUTO_START or DEMAND_STARTwrapper.ntservice.starttype=AUTO_START# Allow the service to interact with the desktop.wrapper.ntservice.interactive=false#********************************************************************# Forking Properties#********************************************************************wrapper.disable_restarts=TRUEwrapper.ping.timeout=0wrapper.shutdown.timeout=0wrapper.jvm_exit.timeout=0
2. 将下载的sonarqube-community-branch-plugin-1.8.0.jar插件放到\sonarqube-8.9.9.56886\extensions\plugins\目录下
3. 修改\conf\sonar.properties

# WEB SERVER
sonar.web.javaAdditionalOpts=-javaagent:./extensions/plugins/sonarqube-community-branch-plugin-1.8.0.jar=web
sonar.ce.javaAdditionalOpts=-javaagent:./extensions/plugins/sonarqube-community-branch-plugin-1.8.0.jar=ce

-Dsonar.pdf.username=admin
-Dsonar.pdf.password=admin

3. 运行snoarQube

在\sonarqube-8.9.9.56886\bin\windows-x86-64\下，运行StartSonar.bat文件

第一次运行时会要求要修改密码，根据提示修改密码

账号：admin
修改后密码:admin123

4.sonarQube的配置项目

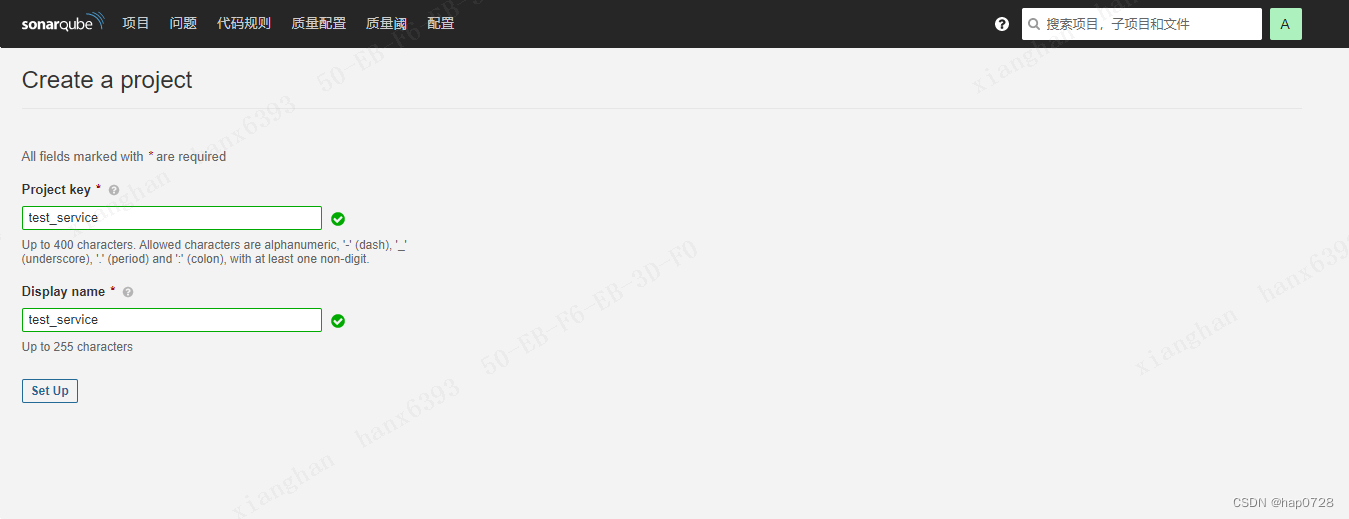

4.1创建项目

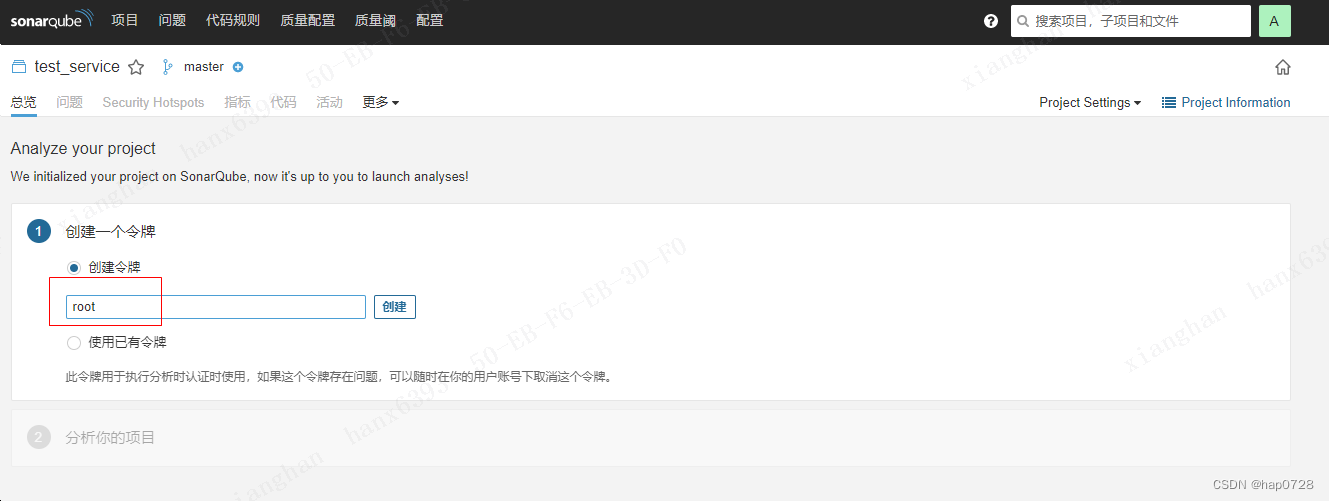

4.2访问授权令牌

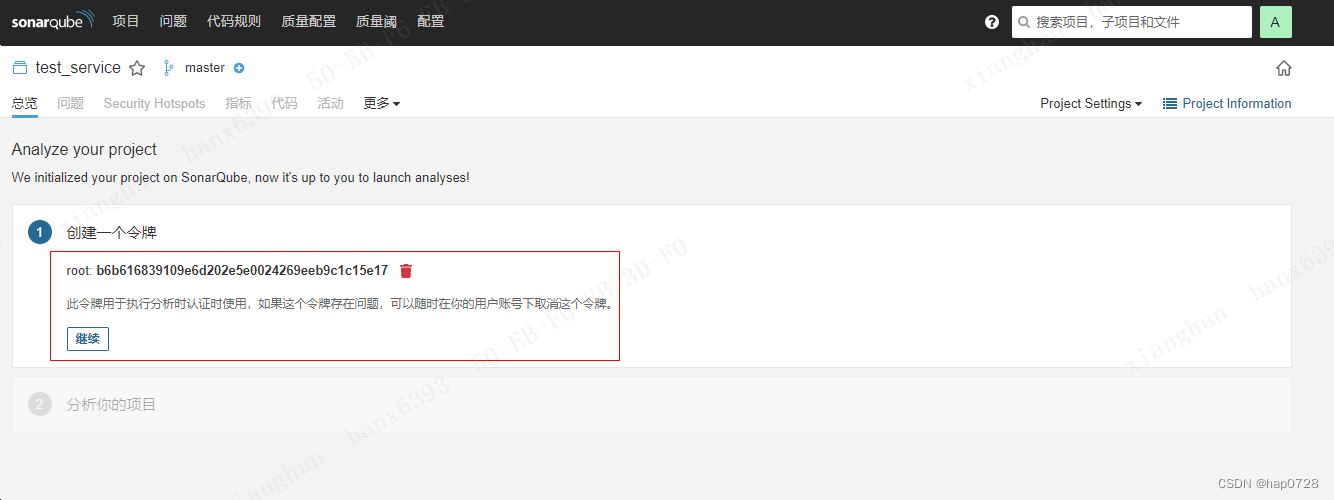

4.3生成令牌

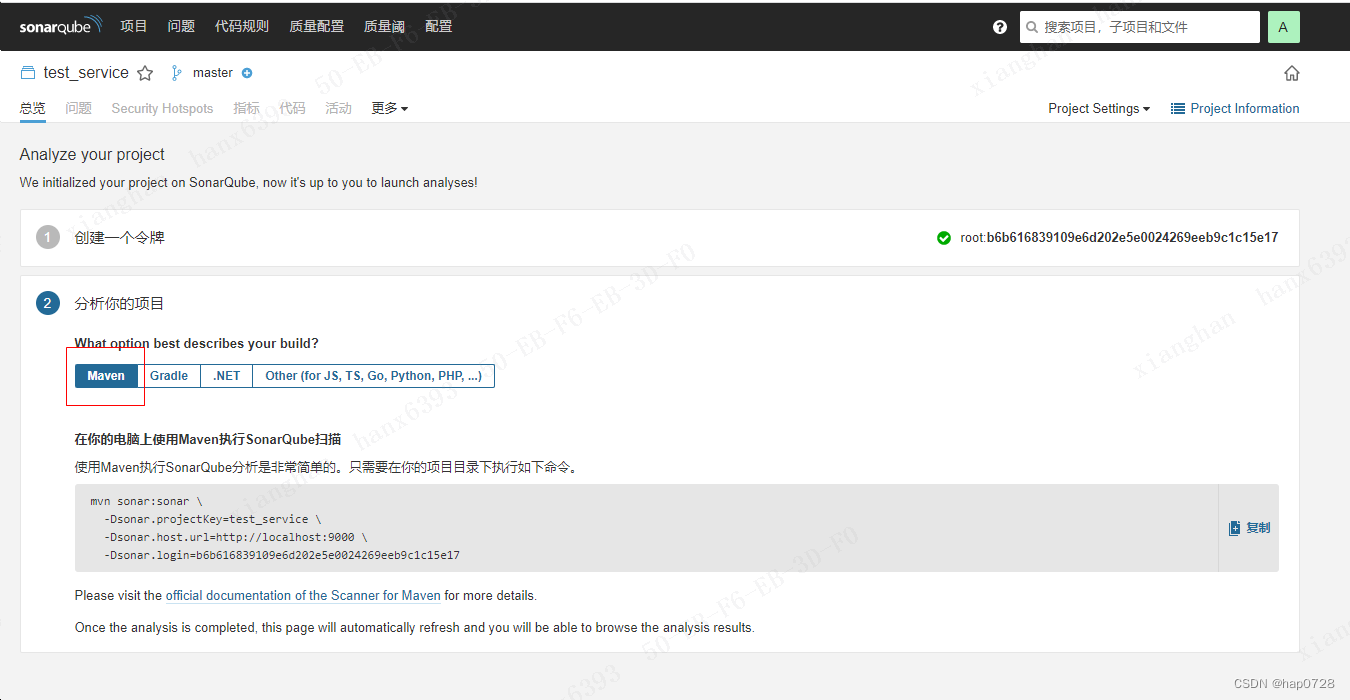

4.4maven扫描运行方式

5.springcloud项目的配置

5.1添加配置文件sonar-project.properties

在被扫描的项目/模块路径下新增配置文件sonar-project.properties

配置文件内容

# must be unique in a given SonarQube instance
sonar.projectKey=test-service

# --- optional properties ---

# defaults to project key
#sonar.projectName=My project
sonar.projectName=test-service
# defaults to 'not provided'
#sonar.projectVersion=1.0
sonar.projectVersion=1.0

# Path is relative to the sonar-project.properties file. Defaults to .
#sonar.sources=.

# 源代码目录，如果多个使用","分割 例如：mode1/src/main,mode2/src/main
sonar.sources=src/main/java

# 单元测试目录，如果多个使用","分割 例如：mode1/src/test,mode2/src/test
sonar.tests=src/test/java

# java字节码目录
sonar.java.binaries=target/classes

# 单元测试报告目录
#sonar.junit.reportsPath=target/surefire-reports

sonar.coverage.jacoco.xmlReportPaths=target/surefire-reports
# 代码覆盖率插件
sonar.java.coveragePlugin=jacoco

# jacoco.exec文件路径
sonar.jacoco.reportPath=target/coverage-reports/jacoco.exec

# 忽略的目录
#sonar.exclusions=*/src/test/**/*

# Encoding of the source code. Default is default system encoding
#sonar.sourceEncoding=UTF-8

sonar.login=admin
sonar.password=admin123

5.2pom.xml

在项目的父pom中添加依赖和插件依赖

<dependency><groupId>org.mockito</groupId><artifactId>mockito-junit-jupiter</artifactId><version>${mockito.version}</version></dependency><!-- Jacoco dependencies. --><dependency><groupId>org.jacoco</groupId><artifactId>jacoco-maven-plugin</artifactId><version>0.8.6</version></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><!-- 单元测试 --><dependency><groupId>junit</groupId><artifactId>junit</artifactId><scope>test</scope></dependency><plugin><!-- Configures the compiler. --><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.8.0</version><configuration><compilerArgs><arg>-Xlint</arg></compilerArgs></configuration></plugin><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-surefire-plugin</artifactId><configuration><testFailureIgnore>true</testFailureIgnore></configuration><version>2.22.0</version></plugin><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-failsafe-plugin</artifactId><version>2.22.0</version><executions><execution><goals><goal>integration-test</goal><goal>verify</goal></goals></execution></executions></plugin><plugin><!-- Code coverage plugin. --><!-- This sets up code coverage for the unit tests, the integration tests, --><!-- and the combined coverage of both. --><!-- After running a `mvn clean install`, open `target/site/jacoco-both/index.html` in a browser. --><groupId>org.jacoco</groupId><artifactId>jacoco-maven-plugin</artifactId><version>0.8.6</version><configuration><includes><!--覆盖率计算包含的类--><include>**/controller/**/*</include><include>**/service/**/*</include></includes><excludes><!--排除像entity、配置等无单元测试意义的类。如有，在Sonar服务端也需要配合排除(Ignore Code Coverage: https://docs.sonarqube.org/latest/project-administration/narrowing-the-focus/#header-5)--><exclude>**/config/**/*</exclude><exclude>**/entity/**/*</exclude></excludes></configuration><executions><execution><id>jacoco-initialize</id><goals><goal>prepare-agent</goal></goals></execution><execution><id>jacoco-site</id><phase>package</phase><goals><goal>report</goal></goals></execution></executions></plugin>

5.3执行扫描

在sonar-project.properties文件所在位置执行命令

mvn clean verify sonar:sonar -Dsonar.branch.name=develop

6. vue项目的配置

6.1 添加配置文件sonar-project.properties

在被扫描的项目/模块路径下新增配置文件sonar-project.properties

配置文件内容

# must be unique in a given SonarQube instance
sonar.projectKey=web-service

# --- optional properties ---

# defaults to project key
#sonar.projectName=My project
sonar.projectName=web-service
# defaults to 'not provided'
#sonar.projectVersion=1.0
# 中文的字段需要用Unicode转码，展示到sonarqube的web中才不会乱码
sonar.projectName=\u6d4b\u8bd5\u9879\u76ee

# 可用的配置项
sonar.projectVersion=1.0
sonar.sourceEncoding=UTF-8
sonar.sources=./src
sonar.exclusions=/node_modules/
sonar.tests=./src
sonar.test.inclusions=**/*.spec.ts

# \u5FFD\u7565\u7684\u76EE\u5F55
#sonar.exclusions=*/src/test/**/*

# Encoding of the source code. Default is default system encoding
#sonar.sourceEncoding=UTF-8

sonar.login=admin
sonar.password=admin123

6.2 在sonar-project.properties文件所在位置执行命令

sonar-scanner.bat -D"sonar.projectKey=web-service"-D"sonar.sources=."-D"sonar.host.url=http://localhost:9000"-D"sonar.login=admin"-D"sonar.branch.name=dev"
