驱动开发: 封装内核级驱动读写

内核级别的内存读写可用于绕过各类驱动保护，从而达到强制读写对端内存的目的，本人闲暇之余封装了一个驱动级的内核读写接口，使用此接口可实现对远程字节，字节集，整数，浮点数，多级偏移读写等。

项目地址：GitHub LyMemory

一款完全免费的内核级内存读写工具，可强制读写任意应用层进程内存数据，驱动工具目前支持读写整数，字节，字节集，单精度浮点数，双精度浮点数，多级偏移读写，取模块地址，分配远程内存等功能，读写效率高，速度快，兼容性好，使用时需自己签名或在测试模式下。

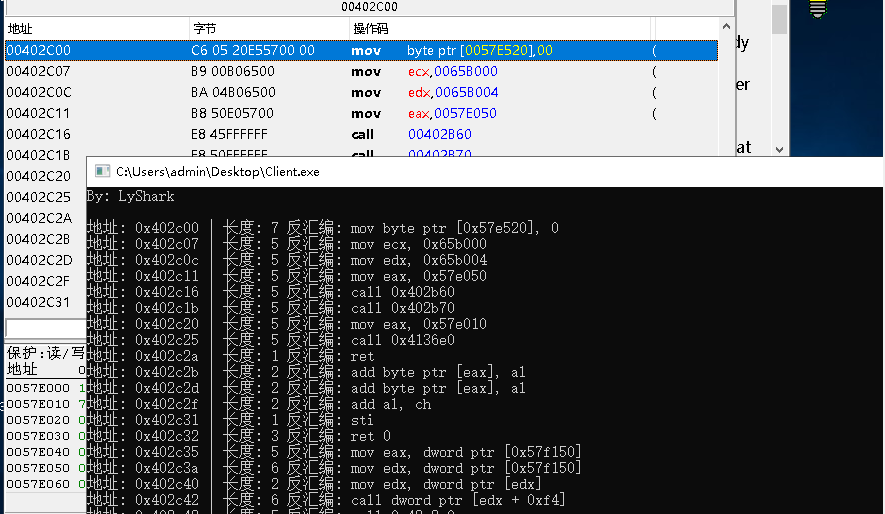

在这里插入图片描述

如下将简单介绍该内核读写工具各类API接口是如何调用的，鉴于驱动读写商业价值较大故暂时不放出源码（后期考虑）。

驱动读写首先要看的就是驱动支持的控制信号，如下是我封装的几个驱动控制器。

// 通用读写系列#defineIOCTL_IO_ReadProcessMemory0x801#defineIOCTL_IO_WriteProcessMemory0x802#defineIOCTL_IO_ReadDeviationIntMemory0x803#defineIOCTL_IO_WriteDeviationIntMemory0x804#defineIOCTL_IO_ReadProcessMemoryByte0x805#defineIOCTL_IO_WriteProcessMemoryByte0x806// 全局读写系列#defineIOCTL_IO_SetPIDCTL_CODE(FILE_DEVICE_UNKNOWN,0x807, METHOD_BUFFERED, FILE_ANY_ACCESS)#defineIOCTL_IO_ReadMemoryCTL_CODE(FILE_DEVICE_UNKNOWN,0x808, METHOD_BUFFERED, FILE_ANY_ACCESS)#defineIOCTL_IO_WriteMemoryCTL_CODE(FILE_DEVICE_UNKNOWN,0x809, METHOD_BUFFERED, FILE_ANY_ACCESS)// 模块操作系列#defineIOCTL_IO_GetModuleAddressCTL_CODE(FILE_DEVICE_UNKNOWN,0x810, METHOD_BUFFERED, FILE_ANY_ACCESS)#defineIOCTL_IO_GetProcessIDCTL_CODE(FILE_DEVICE_UNKNOWN,0x811, METHOD_BUFFERED, FILE_ANY_ACCESS)#defineIOCTL_IO_GetSystemRoutineAddrCTL_CODE(FILE_DEVICE_UNKNOWN,0x812, METHOD_BUFFERED, FILE_ANY_ACCESS)#defineIOCTL_IO_CreateAllocMemoryCTL_CODE(FILE_DEVICE_UNKNOWN,0x813, METHOD_BUFFERED, FILE_ANY_ACCESS)#defineIOCTL_IO_RemoveAllocMemoryCTL_CODE(FILE_DEVICE_UNKNOWN,0x814, METHOD_BUFFERED, FILE_ANY_ACCESS)// 版本升级后的新功能 2022-09-24#defineIOCTL_IO_ReadDeviationMemory0x815

内核驱动读写类库在2022年9月24日升级了功能，函数列表功能一览。

传统读写函数是每次都会附加到进程中，这种方式效率较低，但也还是可以使用的。

// 读内存字节
BYTE ReadProcessMemoryByte(DWORD Pid, ULONG64 Address)// 写内存字节
BOOL WriteProcessMemoryByte(DWORD Pid, ULONG64 Address, BYTE bytef)// 读内存32位整数型
DWORD ReadProcessMemoryInt32(DWORD Pid, ULONG64 Address)// 读内存64位整数型
DWORD ReadProcessMemoryInt64(DWORD Pid, ULONG64 Address)// 写内存32位整数型
BOOL WriteProcessMemoryInt32(DWORD Pid, ULONG64 Address, DWORD write)// 写内存64位整数型
BOOL WriteProcessMemoryInt64(DWORD Pid, ULONG64 Address, DWORD write)// 读内存单精度浮点数
FLOAT ReadProcessMemoryFloat(DWORD Pid, ULONG64 Address)// 读内存双精度浮点数
DOUBLE ReadProcessMemoryDouble(DWORD Pid, ULONG64 Address)// 写内存单精度浮点数
BOOL WriteProcessMemoryFloat(DWORD Pid, ULONG64 Address, FLOAT write)// 写内存双精度浮点数
BOOL WriteProcessMemoryDouble(DWORD Pid, ULONG64 Address, DOUBLE write)// 读多级偏移32位整数型
INT32 ReadProcessDeviationInt32(ProcessDeviationIntMemory *read_offset_struct)// 读多级偏移64位整数型
INT64 ReadProcessDeviationInt64(ProcessDeviationIntMemory *read_offset_struct)// 写多级偏移32位整数型
BOOL WriteProcessDeviationInt32(ProcessDeviationIntMemory *write_offset_struct)// 写多级偏移64位整数型
BOOL WriteProcessDeviationInt64(ProcessDeviationIntMemory *write_offset_struct)// 读多级偏移32位内存地址
DWORD ReadDeviationMemory32(ProcessDeviationMemory *read_offset_struct)// 读多级偏移64位内存地址
DWORD64 ReadDeviationMemory64(ProcessDeviationMemory *read_offset_struct)// 读多级偏移字节型
BYTE ReadDeviationByte(ProcessDeviationMemory *read_offset_struct)// 读多级偏移单精度浮点数
FLOAT ReadDeviationFloat(ProcessDeviationMemory *read_offset_struct)// 写多级偏移字节型
BOOL WriteDeviationByte(ProcessDeviationMemory *write_offset_struct,BYTE write_byte)// 写多级偏移单精度浮点数
BOOL WriteDeviationFloat(ProcessDeviationMemory *write_offset_struct,FLOAT write_float)

全局读写函数封装相对于传统驱动读写，虽然也传入PID但本质上可以

SetPid

只设置一次PID即可实现后续直接读写内存。

// 设置全局进程PID
BOOL SetPid(DWORD Pid)// 全局读内存
BOOL Read(DWORD pid, ULONG64 address, T* ret)// 全局写内存
BOOL Write(DWORD pid, ULONG64 address, T data)// 读内存DWORDvoidReadMemoryDWORD(DWORD pid, ULONG64 addre, DWORD * ret)// 读内存DWORD64voidReadMemoryDWORD64(DWORD pid, ULONG64 addre, DWORD64 * ret)// 读内存字节voidReadMemoryBytes(DWORD pid, ULONG64 addre, BYTE **ret, DWORD sizes)// 读内存浮点数voidReadMemoryFloat(DWORD pid, ULONG64 addre,float* ret)// 读内存双精度浮点数voidReadMemoryDouble(DWORD pid, ULONG64 addre,double* ret)// 写内存字节voidWriteMemoryBytes(DWORD pid, ULONG64 addre, BYTE * data, DWORD sizes)// 写内存DWORDvoidWriteMemoryDWORD(DWORD pid, ULONG64 addre, DWORD ret)// 写内存DWORD64voidWriteMemoryDWORD64(DWORD pid, ULONG64 addre, DWORD64 ret)// 写内存浮点数voidWriteMemoryFloat(DWORD pid, ULONG64 addre,float ret)// 写内存双精度浮点数voidWriteMemoryDouble(DWORD pid, ULONG64 addre,double ret)// 驱动读取进程模块基地址
DWORD64 GetModuleAddress(DWORD pid, std::string dllname)// 根据进程名称获取进程PID
DWORD GetProcessID(std::string procname)// 获取系统函数内存地址
DWORD64 GetSystemRoutineAddress(std::string funcname)// 在对端分配内存空间
DWORD64 CreateRemoteMemory(DWORD length)// 销毁对端内存
DWORD DeleteRemoteMemory(DWORD64 address, DWORD length)

内核读/写字节集: 对远端指定内存地址出读写字节集数组，该功能可用于强制代码注入等。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){// 驱动类
    cDrvCtrl DriveControl;// 安装驱动
    DriveControl.InstallAndRun();// 内存读字节集
    BYTE buffer[8]={0};
    BYTE* bufferPtr = buffer;// 读
    DriveControl.ReadMemoryBytes(2564,0x7713639c,&bufferPtr,sizeof(buffer));for(int x =0; x <8; x++){printf("读取字节: 0x%x \n", buffer[x]);}// 卸载驱动
    DriveControl.RemoveAndStop();system("pause");return0;}

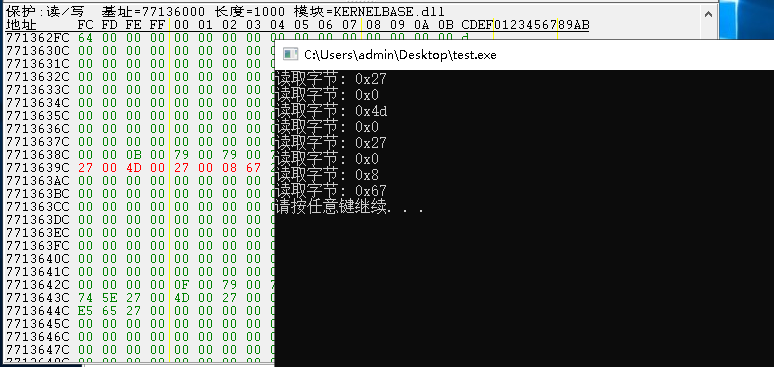

内核读取字节集效果如下:

与读取对应的一个函数是写入，写入代码如下。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){// 驱动类
    cDrvCtrl DriveControl;// 安装驱动
    DriveControl.InstallAndRun();// 写内存字节集
    BYTE writebuff[8]={0x90,0x90,0x90,0x90,0x90,0x90,0x90,0x90};
    DriveControl.WriteMemoryBytes(2564,0x7713639c, writebuff,sizeof(writebuff));// 卸载驱动
    DriveControl.RemoveAndStop();system("pause");return0;}

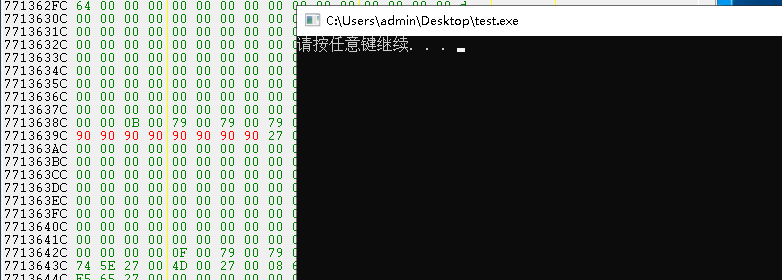

写入后再次查看内存会发现已经变更了。

读写内核数值类型: 数值类型包括了，整数，64位整数，浮点数，双精度浮点等类型。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){// 驱动类
    cDrvCtrl DriveControl;// 安装驱动
    DriveControl.InstallAndRun();

    DWORD data;
    DWORD64 data64;
    FLOAT floats;
    DOUBLE doubles;// 读DWORD
    DriveControl.ReadMemoryDWORD(2564,0x771362fc,&data);printf("dword = %d \n", data);// 读DWORD64
    DriveControl.ReadMemoryDWORD64(2564,0x771362fc,&data64);printf("dword = %d \n", data);printf("dword = %d \n", data+4);// 读取Float
    DriveControl.ReadMemoryFloat(2564,0x771362fc,&floats);printf("float = %f \n", floats);// 读double
    DriveControl.ReadMemoryDouble(2564,0x771362fc,&doubles);printf("double = %f \n", doubles);// 卸载驱动
    DriveControl.RemoveAndStop();system("pause");return0;}

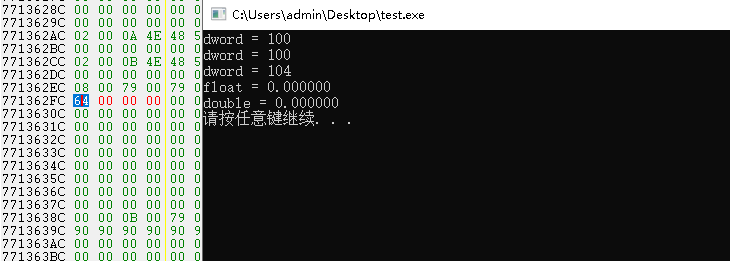

读数值类型效果：

驱动写数值类型与读取类似，这里给出如何应用的案例。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){// 驱动类
    cDrvCtrl DriveControl;// 安装驱动
    DriveControl.InstallAndRun();

    DWORD data;
    DWORD64 data64;
    FLOAT floats;
    DOUBLE doubles;// 写DWORD
    DriveControl.WriteMemoryDWORD(2564,0x771362fc,100);// 写DWORD64
    DriveControl.WriteMemoryDWORD64(2564,0x771362fc,100);// 写Float
    DriveControl.WriteMemoryFloat(2564,0x771362fc,10.5);// 写double
    DriveControl.WriteMemoryDouble(2564,0x771362fc,100.5);// 卸载驱动
    DriveControl.RemoveAndStop();system("pause");return0;}

结构体版读整数: 传递结构体解析参数读取。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){// 驱动类
    cDrvCtrl DriveControl;// 安装驱动
    DriveControl.InstallAndRun();// 写
    ProcessIntMemory write_struct;

    write_struct.pid =6348;// 指定Pid
    write_struct.address =0x748c405c;// 地址
    write_struct.bytes_toread =4;// 写入长度4字节
    write_struct.data =999;// 写入数据
    DriveControl.IoControl(0x802,&write_struct,sizeof(write_struct),0,0,0);// 读
    ProcessIntMemory read_struct;

    read_struct.pid =6348;// 指定Pid
    read_struct.address =0x748c405c;// 地址
    read_struct.bytes_toread =2;// 读取长度4字节
    read_struct.data =0;// 读取的数据

    DriveControl.IoControl(0x801,&read_struct,sizeof(read_struct),&read_struct,sizeof(read_struct),0);

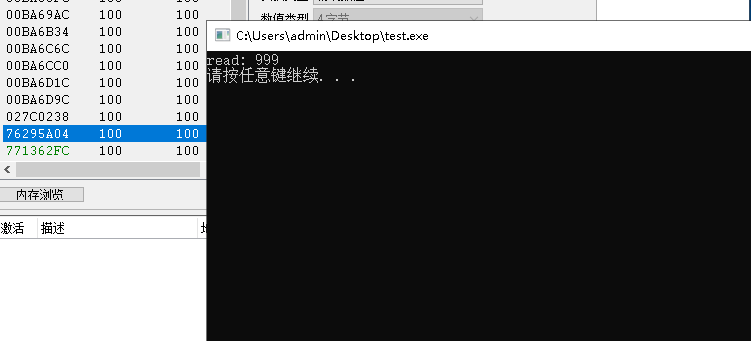

    std::cout <<"read: "<<(int)read_struct.data << std::endl;// 卸载驱动
    DriveControl.RemoveAndStop();system("pause");return0;}

结构版本与类内函数调用方式不同，结构板需要手动调用控制器。

结构版读写字节集: 同理与整数读写一致，需要调用控制器，传入控制信号以及结构体。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){// 驱动类
    cDrvCtrl DriveControl;// 安装驱动
    DriveControl.InstallAndRun();// 写
    ProcessByteMemory write_byte_struct;

    write_byte_struct.pid =6348;
    write_byte_struct.base_address =0x76295a04;
    write_byte_struct.OpCode ={0x90};

    DriveControl.IoControl(0x806,&write_byte_struct,sizeof(write_byte_struct),0,0,0);// 读
    ProcessByteMemory read_byte_struct;
    BYTE read_byte =0;for(int x =0; x <10; x++){
        read_byte_struct.pid =6348;// 指定Pid
        read_byte_struct.base_address =0x76295a04+ x;// 地址
        DriveControl.IoControl(0x805,&read_byte_struct,sizeof(read_byte_struct),&read_byte,sizeof(read_byte),0);if(read_byte ==0){break;}printf("0x%02X ", read_byte);}// 卸载驱动
    DriveControl.RemoveAndStop();system("pause");return0;}

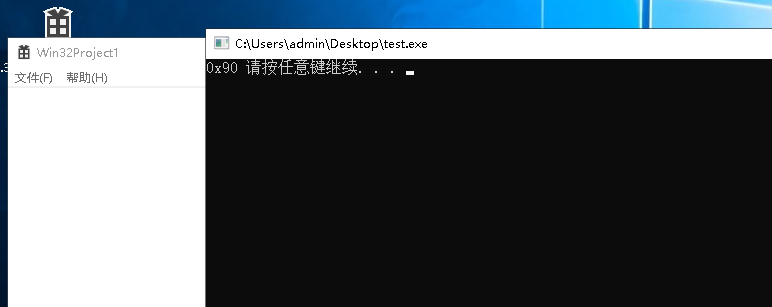

写入后在读取，效果如下：

结构版多级偏移读写: 针对整数型读写的封装，增加了多级偏移读写机制。读写多级偏移整数型(最大32级)

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();// 读
    ProcessDeviationIntMemory read_offset_struct;

    read_offset_struct.pid =1468;// 进程PID
    read_offset_struct.base_address =0x601660;// 基地址
    read_offset_struct.offset_len =4;// 偏移长度
    read_offset_struct.data =0;// 读入的数据
    read_offset_struct.offset[0]=0x18;// 一级偏移
    read_offset_struct.offset[1]=0x0;// 二级偏移
    read_offset_struct.offset[2]=0x14;
    read_offset_struct.offset[3]=0x0c;

    DriveControl.IoControl(0x803,&read_offset_struct,sizeof(read_offset_struct),&read_offset_struct,sizeof(read_offset_struct),0);
    std::cout <<"read offset: "<< read_offset_struct.data << std::endl;

    DriveControl.RemoveAndStop();system("pause");return0;}

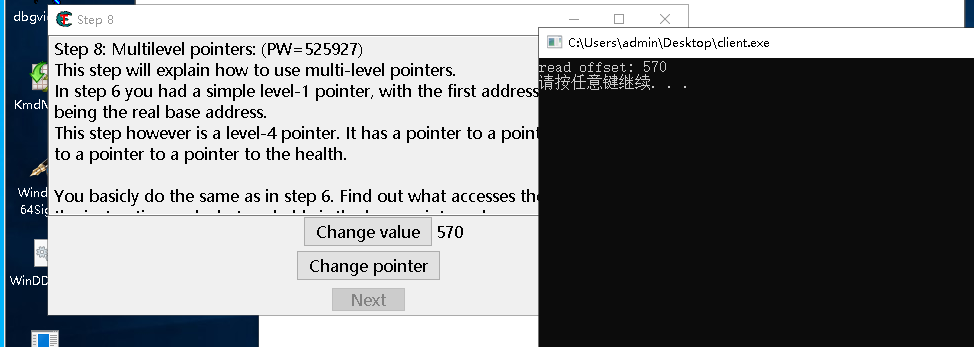

读取结果：

内核读取模块基地址： 内核中强制读取指定进程中模块的基地址。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    DWORD64 dllbase = DriveControl.GetModuleAddress(952,"user32.dll");printf("dllbase = 0x%016I64x \n", dllbase);

    DriveControl.RemoveAndStop();system("pause");return0;}

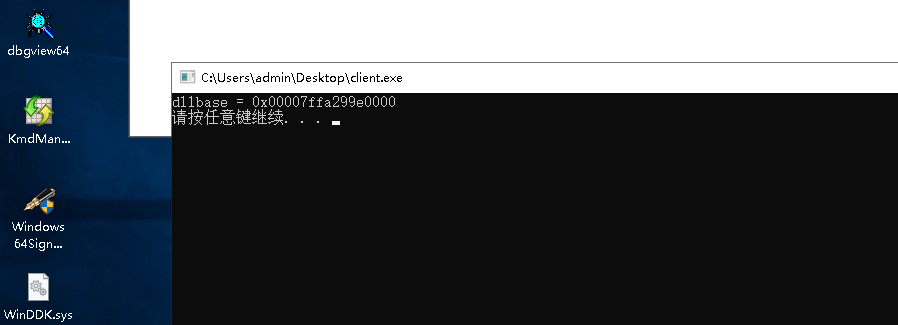

读取效果如下：

根据进程名得到进程PID: 传入进程名，获取到该进程的PID序号。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    DWORD pid = DriveControl.GetProcessID("dbgview64.exe");printf("进程PID: %d \n", pid);

    DriveControl.RemoveAndStop();system("pause");return0;}

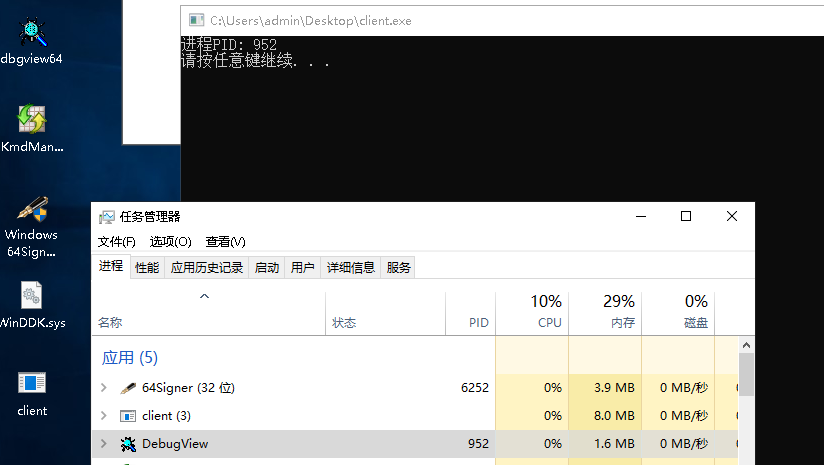

效果如下：

获取系统函数内存地址： 获取SSDT内核函数的内存地址。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    DWORD64 addr = DriveControl.GetSystemRoutineAddress("NtReadFile");printf("模块地址： 0x%016I64x \n", addr);

    DriveControl.RemoveAndStop();system("pause");return0;}

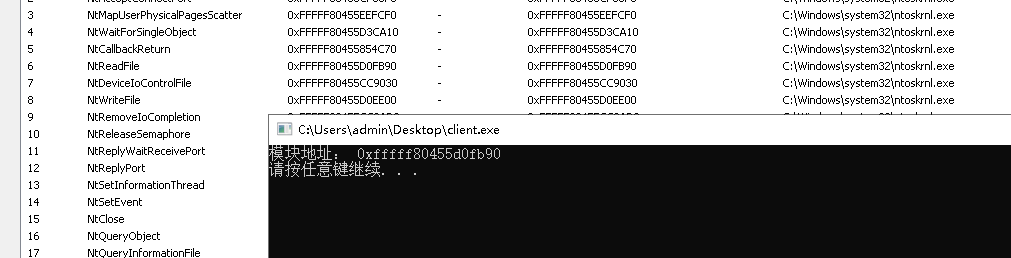

效果如下：

开辟释放堆空间: 在对端内存中开辟，或者释放堆空间，带有读写执行属性。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();// 设置全局PID
    DriveControl.SetPid(952);// 开辟空间
    DWORD64 ref = DriveControl.CreateRemoteMemory(1024);printf("create = %x \n", ref);

    DWORD del_flag = DriveControl.DeleteRemoteMemory(ref,1024);printf("del flag = %d \n", del_flag);

    DriveControl.RemoveAndStop();system("pause");return0;}

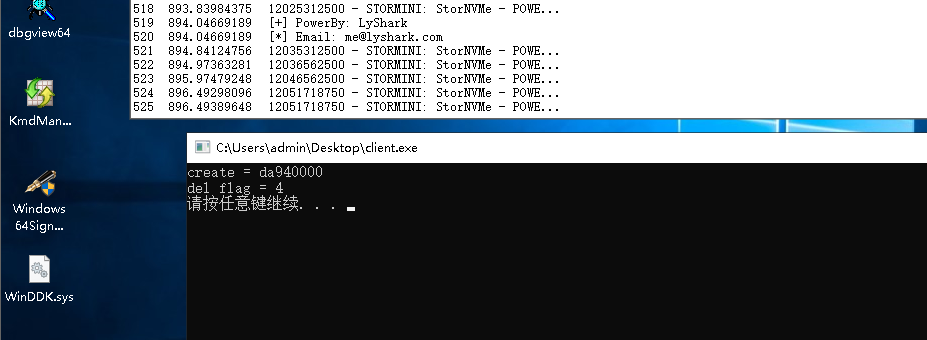

效果如下：

驱动级DLL注入: 注入DLL功能是驱动注入的一个功能，同样使用该控制器控制。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#pragmacomment(lib,"user32.lib")#pragmacomment(lib,"advapi32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();// 注入DLL到程序,支持32位与64位注入
    DriveControl.InjectDll("dbgview64.exe","c://test1.dll");

    DriveControl.RemoveAndStop();system("pause");return0;}

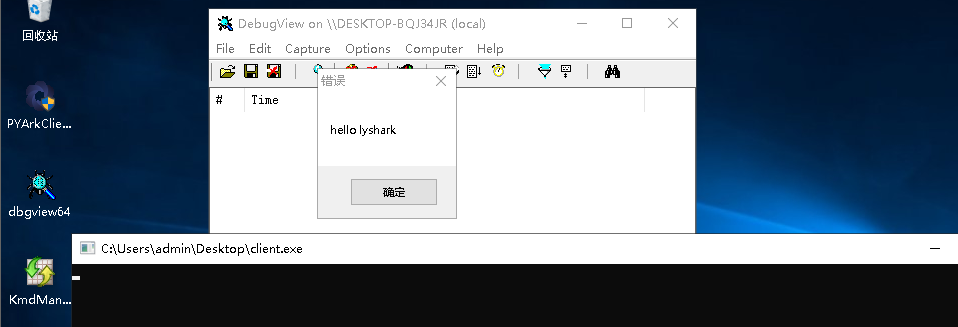

效果如下：

传统模式读写封装: 传统模式读写封装函数可对整数，浮点数，字节进行灵活读写。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    DWORD ref = DriveControl.ReadProcessMemoryInt32(6056,0x003AF4CC);printf("驱动读取：value = %d \n", ref);

    DWORD64 dref = DriveControl.ReadProcessMemoryInt64(6056,0x003AF4CC);printf("驱动读取：value64 = %d \n", dref);

    FLOAT float_ref = DriveControl.ReadProcessMemoryFloat(6056,0x01A1BC90);printf("驱动读取：value = %f \n", float_ref);

    FLOAT double_ref = DriveControl.ReadProcessMemoryDouble(6056,0x01A1BC90);printf("驱动读取：value = %f \n", double_ref);

    BYTE byf = DriveControl.ReadProcessMemoryByte(6056,0x01A1BC90);printf("驱动读取：value = %x \n", byf);for(size_t i =0; i <10; i++){
        BYTE byf1 = DriveControl.ReadProcessMemoryByte(6056,0x01A1BC90+ i);printf("驱动读取：value = %x \n", byf1);}system("pause");return0;}

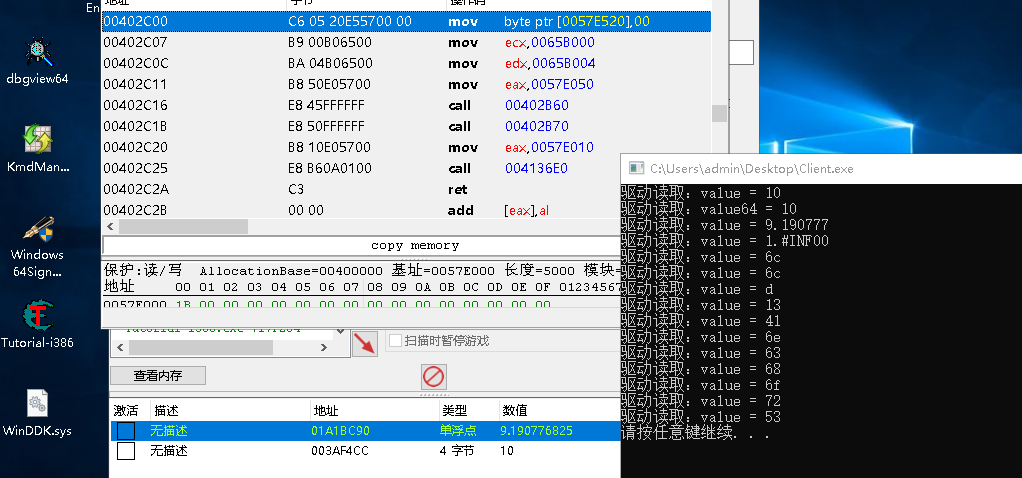

读取效果如下：

写入功能与读取一致，这里以读写整数为案例。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();// 写出9999
    DriveControl.WriteProcessMemoryInt32(6056,0x003AF4CC,9999);// 读取测试
    DWORD ref = DriveControl.ReadProcessMemoryInt32(6056,0x003AF4CC);printf("驱动读取：value = %d \n", ref);system("pause");return0;}

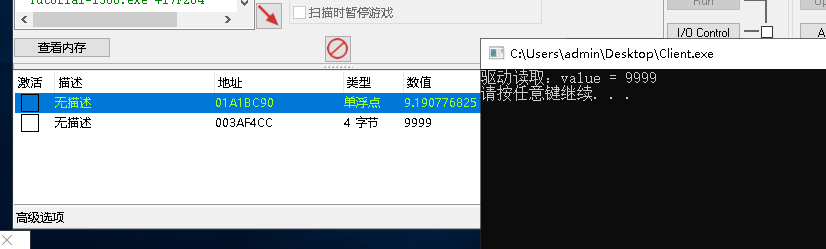

写出效果如下：

内存多级偏移读写： 此功能并不是读写偏移中的数据，而是通过基地址计算出动态地址的一个函数，后续的读写可以自定义操作。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    ProcessDeviationMemory read_offset_struct ={0};

    read_offset_struct.pid =3124;// 进程PID
    read_offset_struct.base_address =0x6566e0;// 基地址
    read_offset_struct.offset_len =4;// 偏移长度
    read_offset_struct.data =0;// 读入的数据
    read_offset_struct.offset[0]=0x18;// 一级偏移
    read_offset_struct.offset[1]=0x0;// 二级偏移
    read_offset_struct.offset[2]=0x14;// 三级
    read_offset_struct.offset[3]=0x0c;// 四级// 定位到动态地址
    DWORD ref = DriveControl.ReadDeviationMemory32(&read_offset_struct);printf("计算出基地址：0x%x \n", ref);system("pause");return0;}

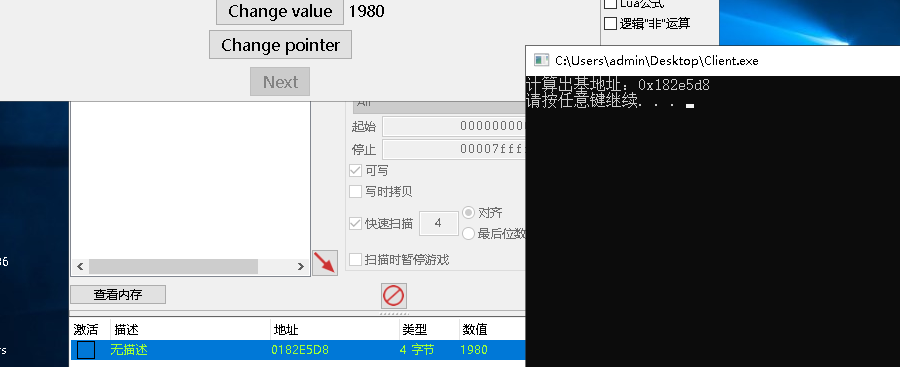

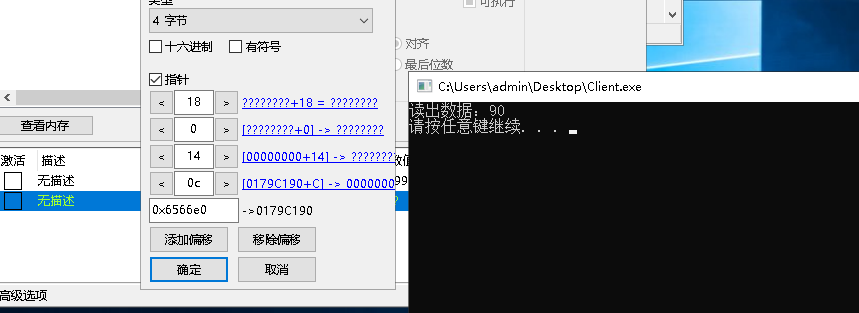

定位内存地址如下：

内存整数多级偏移读写： 一个简单的案例实现对内存整数型偏移读写。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();// 写入内存偏移地址
    ProcessDeviationIntMemory write_offset_struct ={0};

    write_offset_struct.pid =3124;// 进程PID
    write_offset_struct.base_address =0x6566e0;// 基地址
    write_offset_struct.offset_len =4;// 偏移长度
    write_offset_struct.data =999;// 读入的数据
    write_offset_struct.offset[0]=0x18;// 一级偏移
    write_offset_struct.offset[1]=0x0;// 二级偏移
    write_offset_struct.offset[2]=0x14;
    write_offset_struct.offset[3]=0x0c;// 写出
    DriveControl.WriteProcessDeviationInt32(&write_offset_struct);// 读取写入后的地址
    ProcessDeviationIntMemory read_offset_struct ={0};

    read_offset_struct.pid =3124;// 进程PID
    read_offset_struct.base_address =0x6566e0;// 基地址
    read_offset_struct.offset_len =4;// 偏移长度
    read_offset_struct.data =0;// 读入的数据
    read_offset_struct.offset[0]=0x18;// 一级偏移
    read_offset_struct.offset[1]=0x0;// 二级偏移
    read_offset_struct.offset[2]=0x14;
    read_offset_struct.offset[3]=0x0c;// 读入偏移整数
    DWORD ref = DriveControl.ReadProcessDeviationInt32(&read_offset_struct);printf("当前偏移内的数据：%d \n", ref);system("pause");return0;}

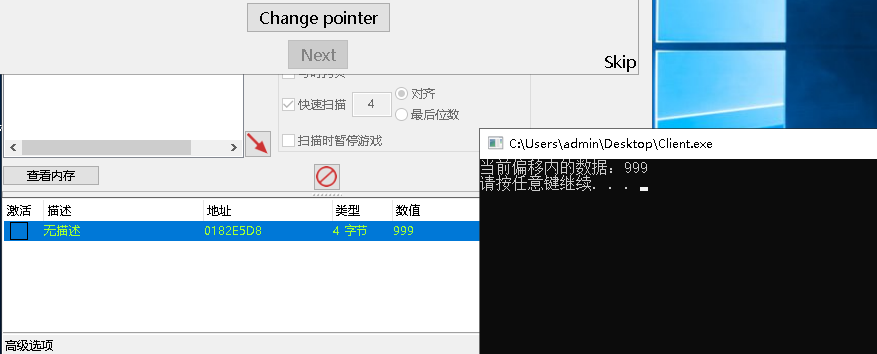

读写效果如下：

读取多级偏移字节型: 读取偏移数据内的字节数据，可循环多次读写。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    ProcessDeviationMemory read_offset_struct ={0};

    read_offset_struct.pid =3124;// 进程PID
    read_offset_struct.base_address =0x6566e0;// 基地址
    read_offset_struct.offset_len =4;// 偏移长度
    read_offset_struct.data =0;// 读入的数据
    read_offset_struct.offset[0]=0x18;// 一级偏移
    read_offset_struct.offset[1]=0x0;// 二级偏移
    read_offset_struct.offset[2]=0x14;
    read_offset_struct.offset[3]=0x0c;// 读取多级偏移字节
    DWORD ref = DriveControl.ReadDeviationByte(&read_offset_struct);printf("%x \n", ref);for(size_t i =0; i <10; i++){
        read_offset_struct.pid =3124;// 进程PID
        read_offset_struct.base_address =0x6566e0+ i;// 基地址
        read_offset_struct.offset_len =4;// 偏移长度
        read_offset_struct.data =0;// 读入的数据
        read_offset_struct.offset[0]=0x18;// 一级偏移
        read_offset_struct.offset[1]=0x0;// 二级偏移
        read_offset_struct.offset[2]=0x14;
        read_offset_struct.offset[3]=0x0c;// 读取多级偏移字节
        DWORD ref = DriveControl.ReadDeviationByte(&read_offset_struct);printf("%x ", ref);}system("pause");return0;}

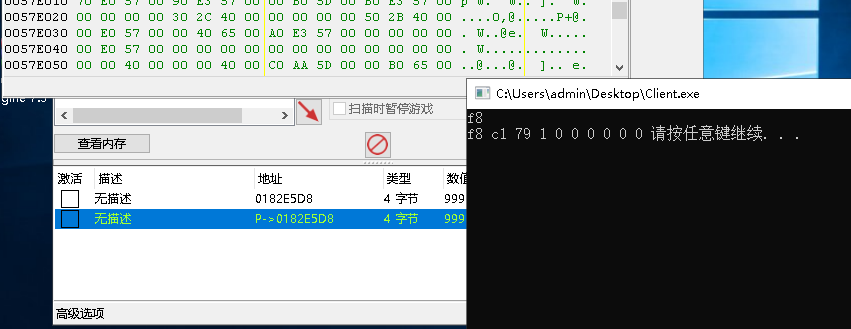

读取效果如下：

写入多级偏移字节型： 如读取一致，传入偏移，以及写出的字节即可替代目标字节。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    ProcessDeviationMemory write ={0};

    write.pid =3124;// 进程PID
    write.base_address =0x6566e0;// 基地址
    write.offset_len =4;// 偏移长度
    write.data =0;// 读入的数据
    write.offset[0]=0x18;// 一级偏移
    write.offset[1]=0x0;// 二级偏移
    write.offset[2]=0x14;
    write.offset[3]=0x0c;// 写内存字节
    DriveControl.WriteDeviationByte(&write,0x90);

    ProcessDeviationMemory read_offset_struct ={0};

    read_offset_struct.pid =3124;// 进程PID
    read_offset_struct.base_address =0x6566e0;// 基地址
    read_offset_struct.offset_len =4;// 偏移长度
    read_offset_struct.data =0;// 读入的数据
    read_offset_struct.offset[0]=0x18;// 一级偏移
    read_offset_struct.offset[1]=0x0;// 二级偏移
    read_offset_struct.offset[2]=0x14;
    read_offset_struct.offset[3]=0x0c;// 读取多级偏移字节
    BYTE ref = DriveControl.ReadDeviationByte(&read_offset_struct);printf("读出数据：%x \n", ref);system("pause");return0;}

写出后，原始指针失效：

读取字节并反汇编： 运用反汇编引擎可实现对读出字节反汇编输出。

#define_CRT_SECURE_NO_WARNINGS#include<iostream>#include<Windows.h>#include<LyMemoryKernel.h>#include<inttypes.h>#include<capstone/capstone.h>#pragmacomment(lib,"capstone32.lib")intmain(int argc,char*argv[]){
    cDrvCtrl DriveControl;
    DriveControl.InstallAndRun();

    BYTE arr[1024]={0};for(size_t i =0; i <1023; i++){
        BYTE by = DriveControl.ReadProcessMemoryByte(3344,0x402c00+ i);

        arr[i]= by;}

    csh handle;
    cs_insn *insn;size_t count;int size =1023;printf("By: LyShark \n\n");// 打开句柄if(cs_open(CS_ARCH_X86, CS_MODE_32,&handle)!= CS_ERR_OK){return0;}// 反汇编代码,地址从0x1000开始,返回总条数
    count =cs_disasm(handle,(unsignedchar*)arr, size,0x402c00,0,&insn);if(count >0){size_t index;for(index =0; index < count; index++){for(int x =0; x < insn[index].size; x++){// printf("机器码: %d -> %02X \n", x, insn[index].bytes[x]);}printf("地址: 0x%"PRIx64" | 长度: %d 反汇编: %s %s \n", insn[index].address, insn[index].size, insn[index].mnemonic, insn[index].op_str);}cs_free(insn, count);}else{printf("反汇编返回长度为空 \n");}cs_close(&handle);system("pause");return0;}

反汇编效果：

标签： 驱动开发 c语言 c++
本文转载自: https://blog.csdn.net/lyshark_csdn/article/details/126666695
版权归原作者 孤风洗剑 所有， 如有侵权，请联系我们删除。
登录后发布评论

“驱动开发: 封装内核级驱动读写”的评论:

还没有评论
关于作者
...
overfit同步小助手
文章同步
相关阅读

机器人技术在安全领域的重要作用

安全学习记录——网络篇（一）

图腾柱PFC：HP1010为您的电动两轮车之旅提供绿色，高效，安全的动力

单元测试数据库回滚问题

这才是单元测试，之前我们都错了

【C语言基础】：字符函数和字符串函数

ChatGPT-Next-Web SSRF漏洞+XSS漏洞复现(CVE-2023-49785)

文章导航
